Fire protection

Smart installation solutions with and without mounting frames

Install fire dampers. Flexible. Simple. Safe.

Wildeboer recessed and surface-mounted frames are designed to be installed quickly and without error. This significantly reduces installation time on site. Fire dampers installed correctly also simplify the process of successful acceptance and commissioning. Thanks to a wide range of tested installation scenarios, Wildeboer’s recessed and surface-mounted frames always offer a suitable solution for your requirements. There is no need for extensive documentation on the correct installation of the fire damper. Well-designed installation procedures enable quick and cost-effective installation.

The benefits of Wildeboer mounting frames and attachment frames

Quick and secure installation
For round and square fire dampers
Maintenance-free thanks to full enclosure
Fitted at the factory or available separately

All installation scenarios at a glance: the Wildeboer installation guide (GERMAN)

Download now

New installation options for maximum safety and flexibility

Modern fire protection faces new challenges: climate-friendly building materials such as clay, the growing use of timber construction, and flexible installation solutions are becoming increasingly important.

Our new solutions offer flexible and efficient options for optimising fire protection in modern construction projects accordingly. We focus on resource-efficient and time-saving installations that meet the highest safety standards.

With our latest installation options, fire dampers can be safely installed in a wide variety of materials and structures – from solid timber to walls with clay panels. In doing so, we are bringing future-proof solutions to construction practice that both ensure fire safety and meet the requirements of sustainable building.

Installation in walls with clay panels

Sustainable building requires new, ecological solutions – and Wildeboer has the right answer. The FK90, FK90K and FR90 fire dampers can now be reliably integrated in walls with clay boards using mortar or clay plaster mortar. This method of construction combines fire protection with ecological advantages:

Sustainable and environmentally friendly: clay panels are 100% recyclable, conserve resources and are harmless to the environment.

Optimal building physics features: regulation of humidity, pollutant absorption and up to 56 dB sound insulation

Proven safety: non-combustible according to DIN EN 13501-1 and tested for a fire resistance period of 30/ 60/ 90 minutes

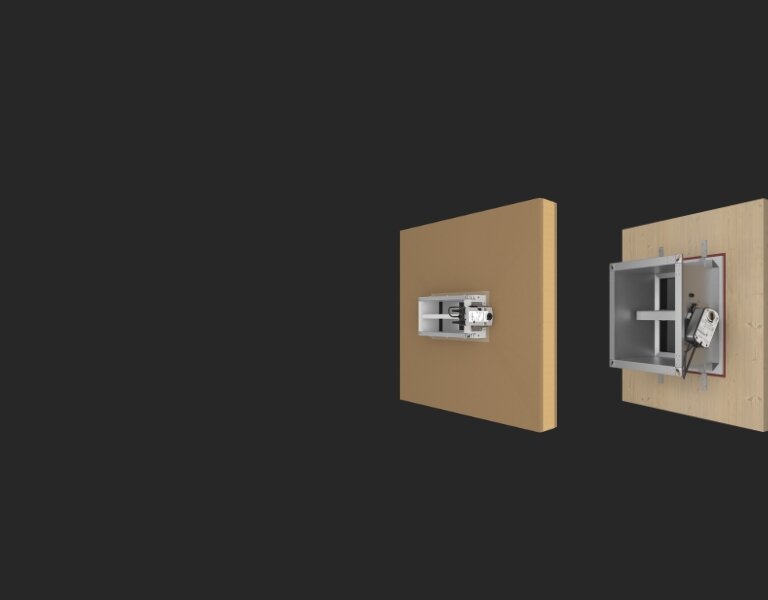

Installation in solid wood constructions

The FK90 and FR90 fire dampers now offer even more flexibility for installation in solid timber construction. The tested combination with fire protection foam allows for:

Flexible installation: In combination with the installation subframe ER8 (for the FK90) or installation subframe RH (for the FR90), gaps of up to 45 mm can be securely sealed with fire protection foam. And that even with uneven installation openings!
