Quality makes the difference

Fire barrier for ventilation systems in accordance with DIN 18017-3

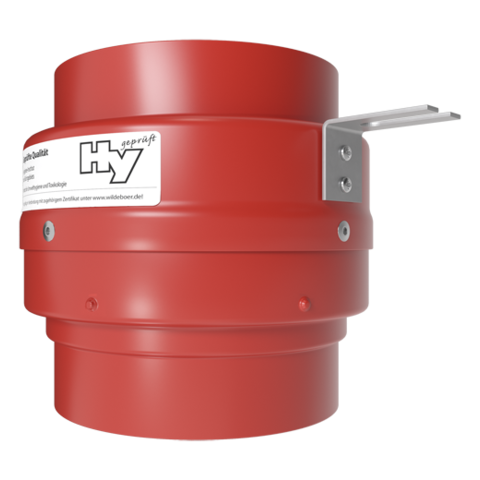

Maintenance-free shut-off device for ventilation systems. Corrosion-resistant, hygienic, easy to install, and backed by a 10-year warranty: TS18 TopSchott.

When it comes to fire protection, quality is key. The TS18 TopSchott is a maintenance-free fire barrier that meets the requirements of DIN 18017-3 – it is corrosion-resistant, hygienically certified and quick to install. For ventilation and extraction systems that remain safe over the long term, even in damp areas.

Trust the original.

When it comes to fire protection, quality is paramount. Thanks to its standard powder coating, the TS18 TopSchott is reliably protected against corrosion both inside and out. This makes it ideal for ventilating areas with high humidity and contamination.
In addition, the TS18 TopSchott has a hygiene certificate and is resistant to a wide variety of disinfectants. A completely unobstructed cross-section with fully smooth interior surfaces all around ensures quiet, permanently safe operation. Easy cleaning is guaranteed.
For quick and flexible installation, the TS18 TopSchott comes factory-equipped with mounting brackets. This simplifies installation, including pre-installation without ventilation ducts.
When speed is of the essence—such as during renovations—our 72-hour express service saves you a lot of stress.

Benefits at a glance

Maintenance-free fire barrier approved for ventilation systems in accordance with DIN 18017-3
General Building Approval Z41.3-556 and hygiene certificate
Optimal corrosion protection through powder coating for a long service life
Simple and flexible installation thanks to integrated mounting brackets
Ideal operation due to fully unobstructed cross-section
10-year warranty with proper installation
Short delivery time thanks to 72-hour express service

Powder coating

100% clear cross-section

includes mounting bracket

Applications for the TS18 TopSchott

The TS18 TopSchott may be used in individual and central ventilation systems in accordance with DIN 18017-3 for the exhaust and supply ventilation of bathrooms and restrooms in residential buildings or, for example, in hotels. Storage rooms in residential units may also be connected. It is used for basic ventilation of residential kitchens as well as for exhausting fumes and vapors from range hoods. Refer to the user manual for specific details.

User Manuals

Installation options

Immediately below, within, and immediately above floor slabs rated F90 made of concrete or aerated concrete with a thickness of 100 mm or more, or rated F30, F60, and F90 made of wood-based materials with a thickness of 100 mm or more
In, on, and up to 6 m away from single- or multi-shell shafts F30, F60, F90 or vertical ventilation ducts L30, L60, L90 made of mineral building materials with a thickness of 24 mm or more

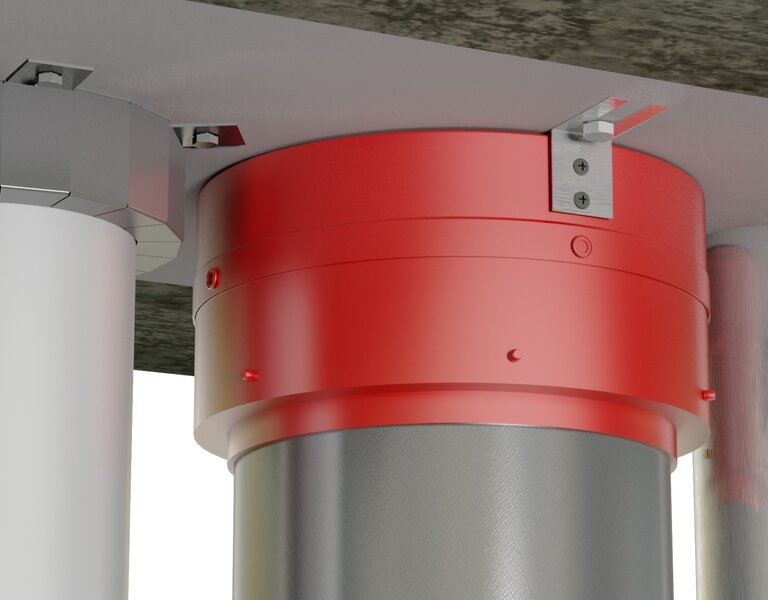

Spacing guidelines for installing TS18 TopSchotts with adjacent cable or pipe bulkheads

TS18 TopSchotts can be installed directly adjacent to one another. However, when installing them in adjacent cable or pipe penetrations, spacing requirements must be observed. If this distance is less than 50 mm according to MLAR, or less than 100 mm or 200 mm according to DIBt, official certifications and fire tests are required for the configuration of the fire barriers.

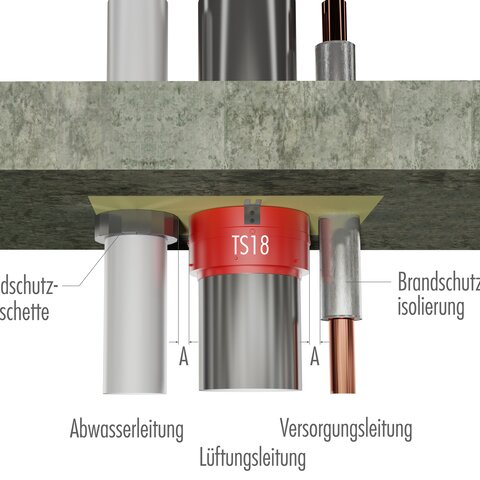

(A = Distance between the TS18 TopSchott and the cable or pipe fire barrier. Varies between 0 mm and 20 mm depending on the manufacturer.)

Clearances for cable or pipe penetrations

The clearances to TS18 TopSchotts must be specified in the statements of applicability for cable and pipe penetrations if there is to be a deviation from the DIBt clearance regulations (see DIBt Newsletters 02/2012 and 05/2013). General Building Approval Z 41.3-556 does not specify any clearances for the TS18 TopSchott relative to other installations.
However, various suppliers of cable and pipe fire barriers have successfully passed fire tests with minimal clearances to the TS18 TopSchott. For further information, please contact the manufacturers of the cable and pipe fire barriers who hold the relevant general building authority approvals.
