DT swirl diffuser
The DT swirl diffuser has progressively twisted air deflection blades. These blades ensure reliable jet control in all situations with variable and constant volume flows. Even in cooling mode, this ceiling diffuser ensures that the supply air is reliably distributed to the room ceiling. It is suitable for both supply air and exhaust air applications.
Technical details
- Suitable for supply air and exhaust air applications with constant and variable volume flows
- For high air volume flows at low sound power levels
- Powerful, progressively twisted blade profile
- Front plates available in square or round
- Size: 325 mm to 625 mm
- Precisely matched plenum boxes available for easy installation and operation
- Hygiene certificate available
Declarations & proofs
Product details
The swirl diffuser DT has progressively twisted blade profiles and ensures perfect jet control in every situation with constant and variable volume flows.
Function
Even in cooling mode, this ceiling diffuser ensures reliable application of the supply air flow to the room ceiling. It is suitable for supply air and extract air applications with variable and constant volume flows.
The product enables high volume flows with low sound power levels. The radial and axially symmetrical design of the front plate ensures perfect room flow.
Symmetrical air distribution is achieved via a square or round front plate with an attractive design.
DT swirl diffusers create a high induction of the room air directly at the diffuser. This very quickly reduces the velocity of the outgoing supply air and the temperature differences.
Design
DT swirl diffusers are made of galvanized sheet steel and are supplied powder-coated. Plenum boxes made of galvanized sheet steel are available to match the DT swirl diffuser.
A version optimized for low installation heights is available. With the optional damper, the volume flow can be conveniently adjusted without dismantling the swirl diffuser.
The matching plenum boxes are measured together with the ceiling air diffuser and always form a balanced unit for maximum comfort.
Dimensions of swirl diffuser DT
They are available in nominal sizes from 325 mm to 625 mm and with a hole pattern from 325 mm to 600 mm.
Product markings
The DT swirl diffusers are marked with a hygiene certificate from an independent external testing institute.
Technical specifications
Not all of the variant values listed here can be combined with each other. Use our Wildeboer configurator to easily check the available options.
| Front plate form |
|
| Front plate size |
|
| Hole pattern size |
|
| Connection parts |
|
| Connecting piece dimensions |
|
| Damper |
|
| Air deflector plate |
|
| Colour Plenum box |
|
| Lip seal |
|
| Air direction |
|

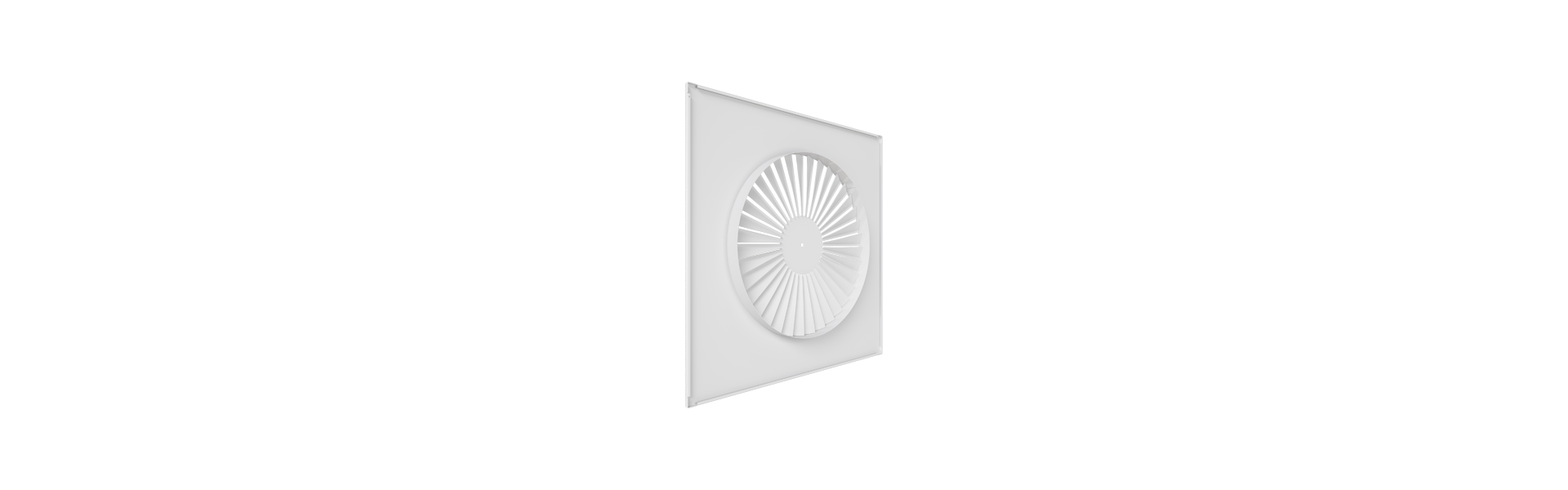

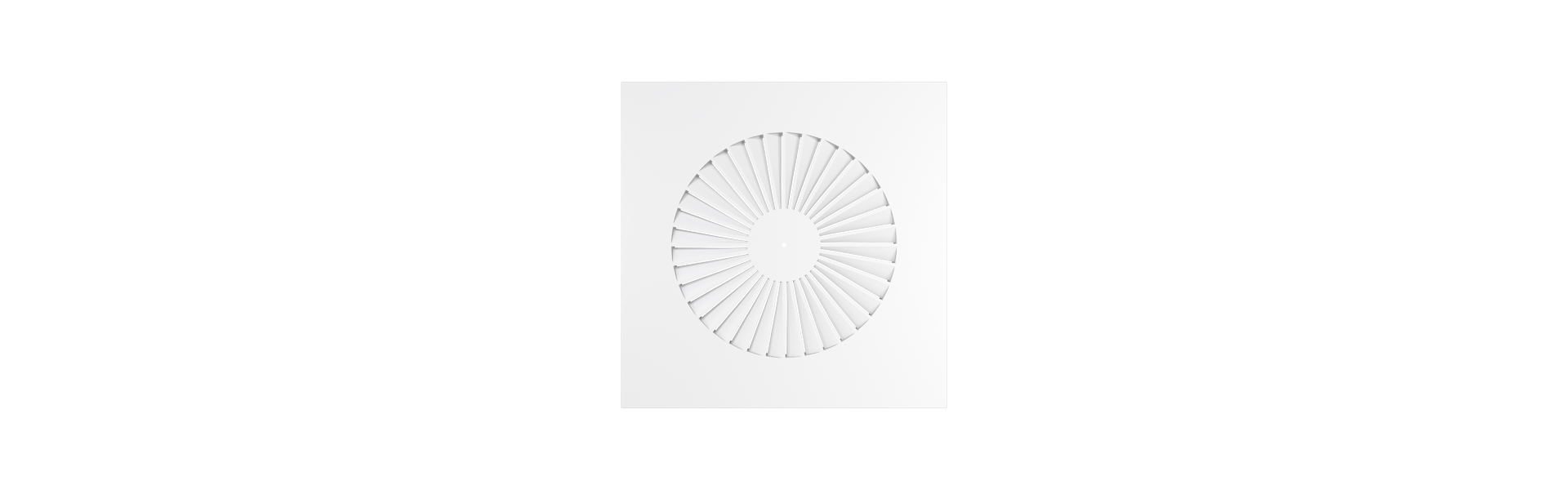

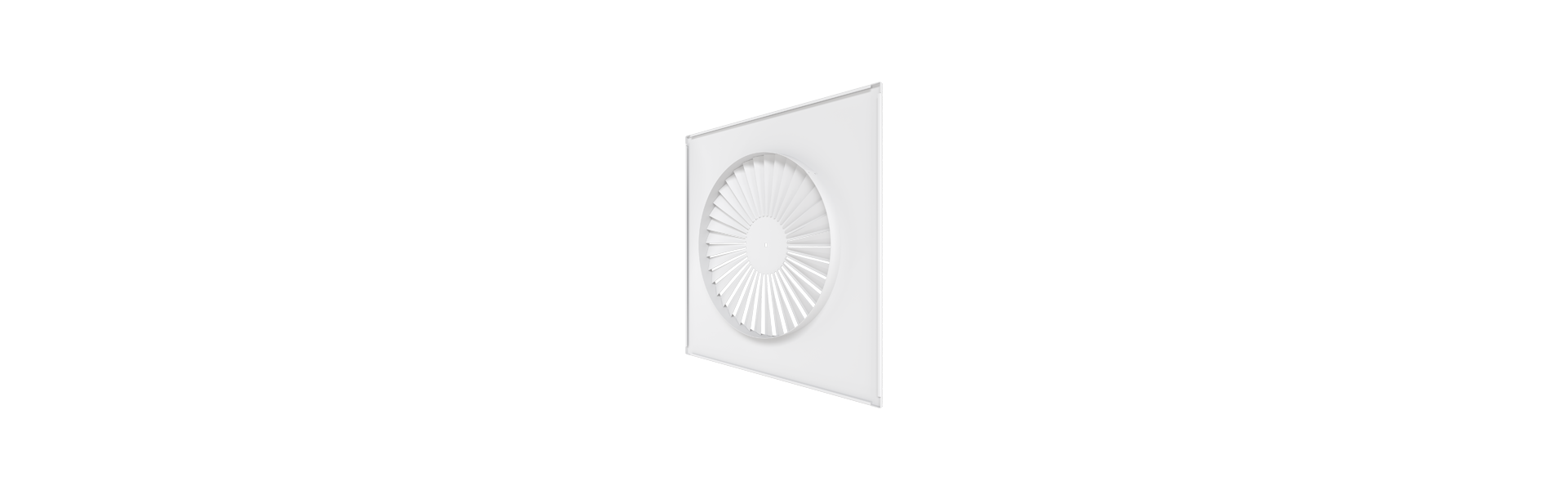

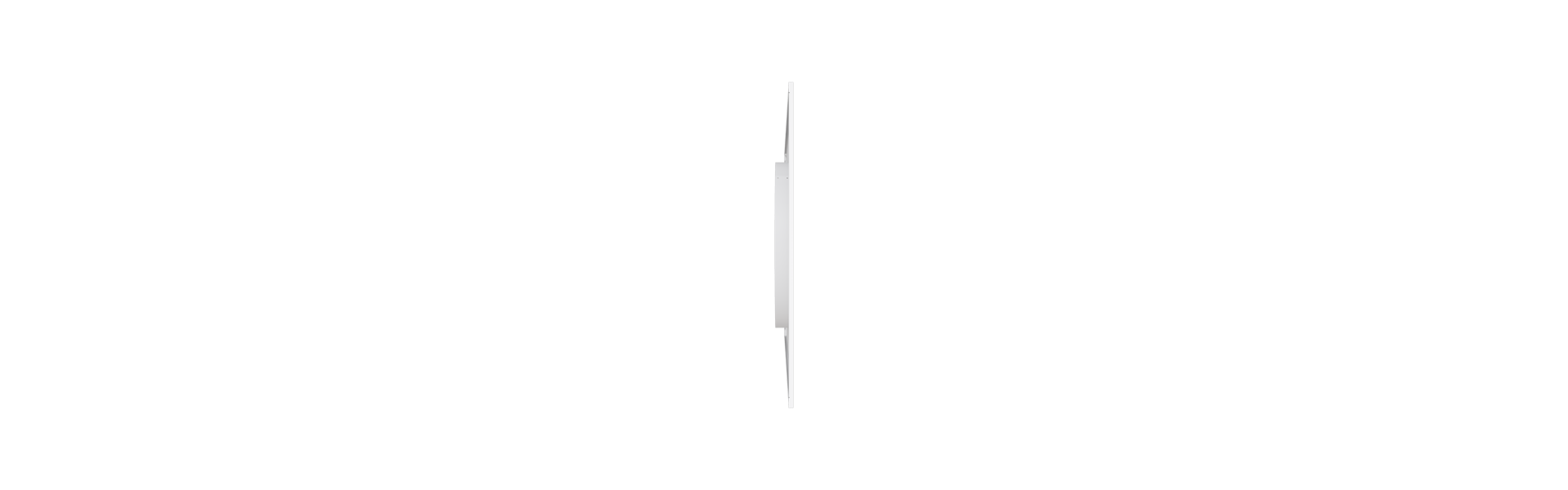

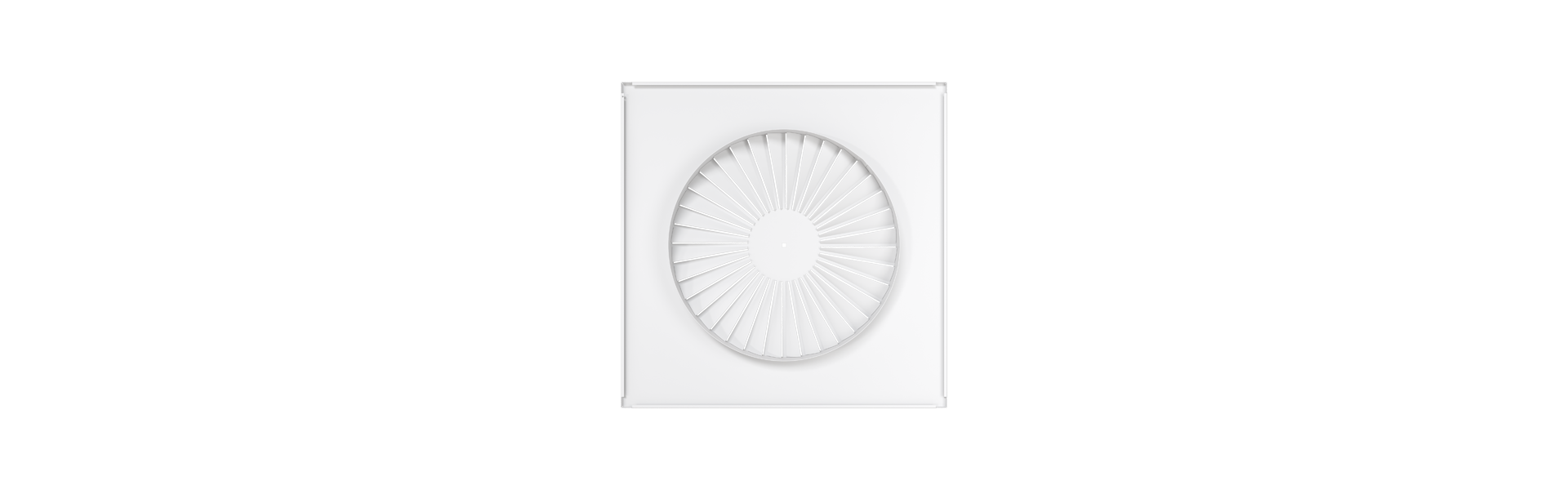

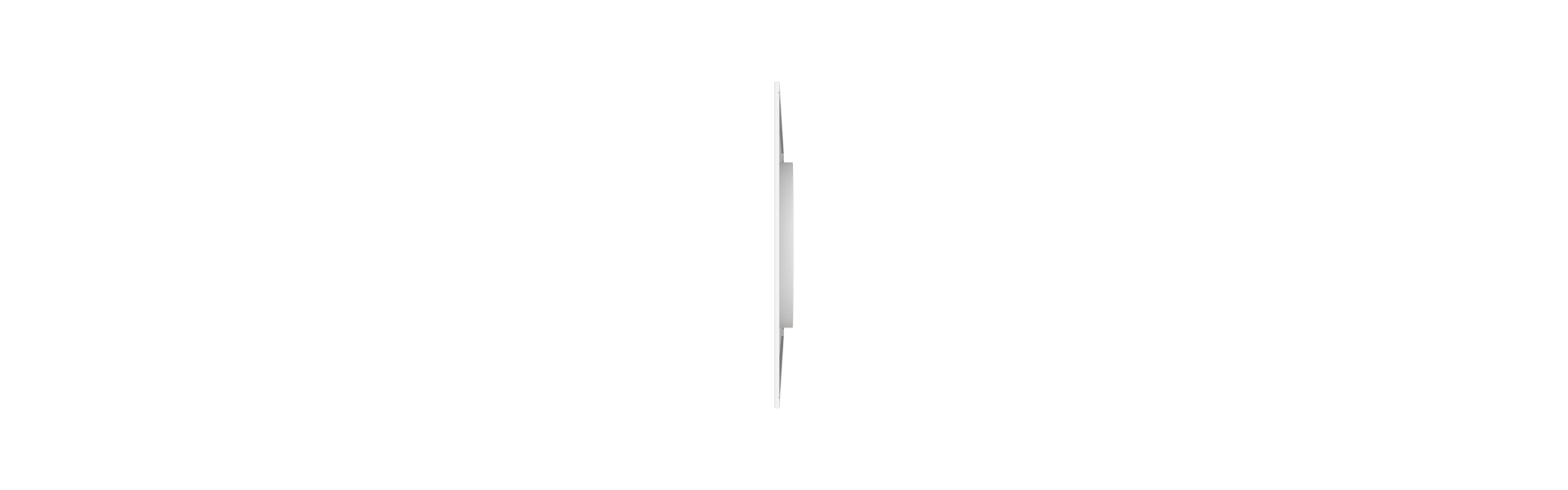

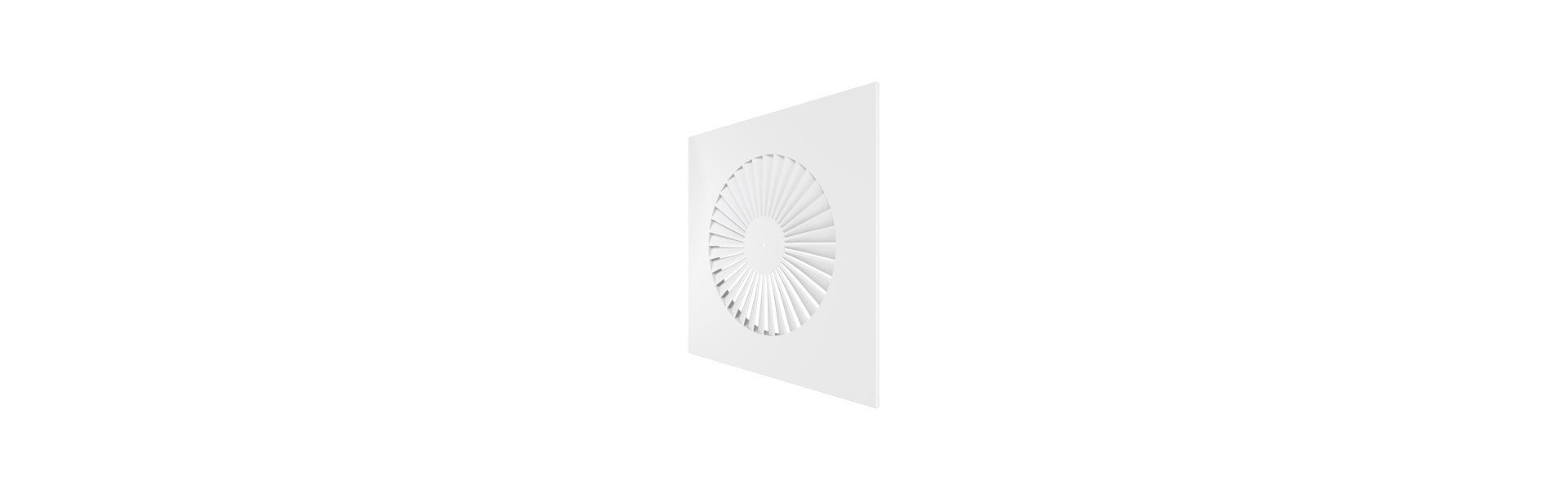

Product pictures
