W, AW, AWE weather resistant louvre
Multileaf dampers & weather resistant louvres

W, AW, AW-E weather resistant louvre

All weather resistant louvers are suitable for use in the outdoor air or exhaust air of ventilation systems. They have water-repellent blades and are designed for installation in the exterior walls of a building.

Technical details

  • Suitable for outdoor air and exhaust air in ventilation systems
  • Made of galvanized sheet steel (W) and aluminum (AW, AWE)
  • Profiled, water-repellent blades
  • Suitable for installation in exterior walls
  • Free cross-sectional area approx. 60% of the flow cross-section

Product details

Wildeboer weather resistant louvres W, AW, and AWE are suitable for outdoor air or exhaust air in ventilation and air conditioning systems.

Free cross-section weather resistant louvres

The free cross-sectional area is approximately 60% of the flow cross-section.

Design

They have profiled, water-repellent blades in a surrounding frame for installation in exterior walls. A protective grille made of stainless steel with a mesh size of approx. 16 x 18 mm is permanently mounted on the rear. The weather resistant louvre is fastened using dimple holes.

For weather resistant louvres W, the frame and blades are made of galvanized sheet steel. Weather resistant louvres of the AW series are made of aluminum.

The surface of the AW product is untreated, while that of weather resistant louvres AWE is made of anodized aluminum. The frame and blades of the AWE product are also made of extruded aluminum profiles.

Dimensions of weather resistant louvres

The W, AW and AWE products are available in sizes ranging from 300 mm x 345 mm to 2,100 mm x 2,078 mm.

Technical specifications

Not all of the variant values listed here can be combined with each other. Use our Wildeboer configurator to easily check the available options.

Width
  • from 300 to 2100 mm in 1 mm increments
Height
  • from 345 to 2078 mm in 1 mm increments
Colour
  • Galvanized
  • In colour RAL
Installation subframe
  • Without installation subframe
  • With installation subframe
Material
  • Stahl
  • Aluminium
  • Aluminium, eloxiert
Luftrichtung (WSG)
  • Exit air (outflowing)
  • External air (inflowing)

Product pictures

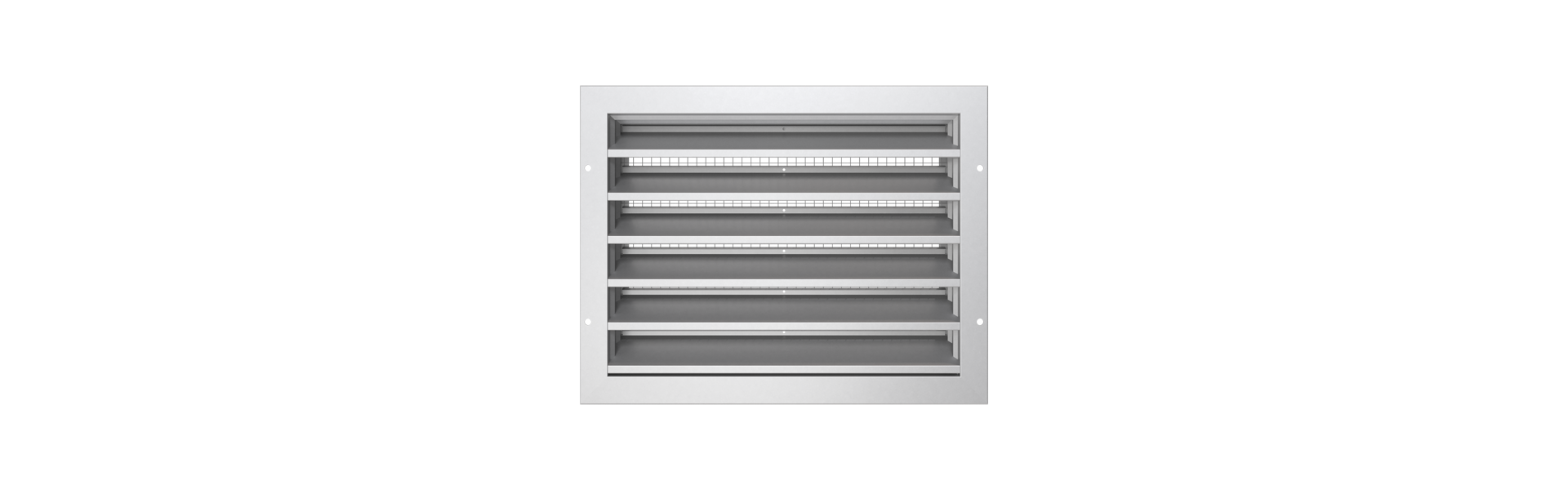

W Weather resistant louvre from front

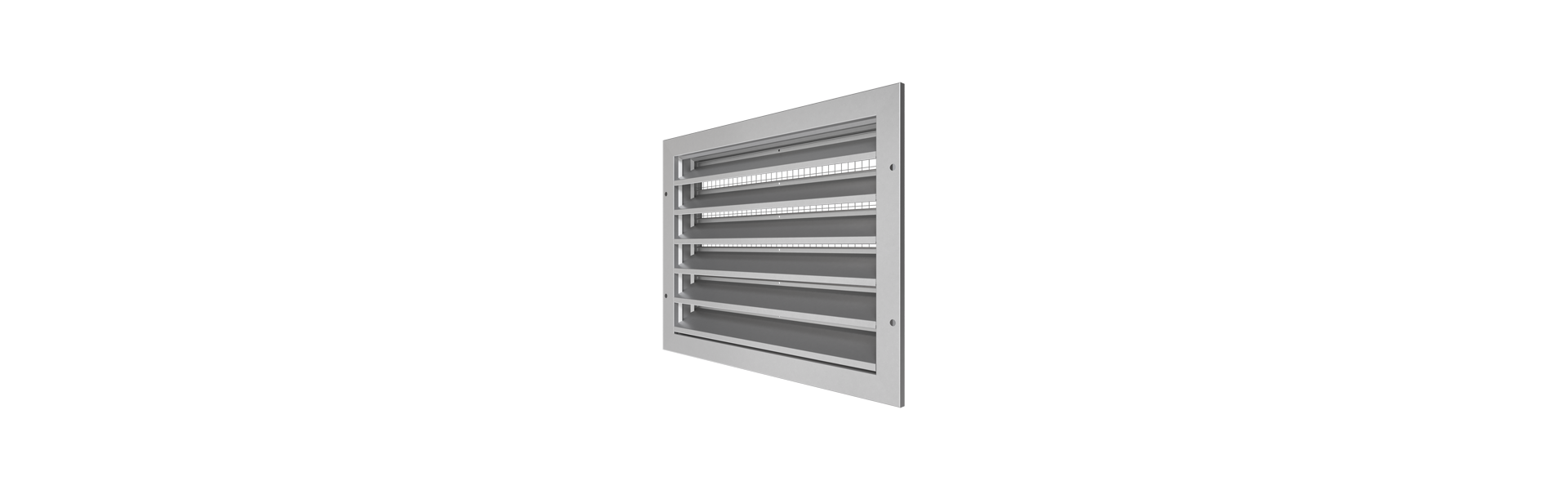

W Weather resistant louvre rotated halfway to the left from the front

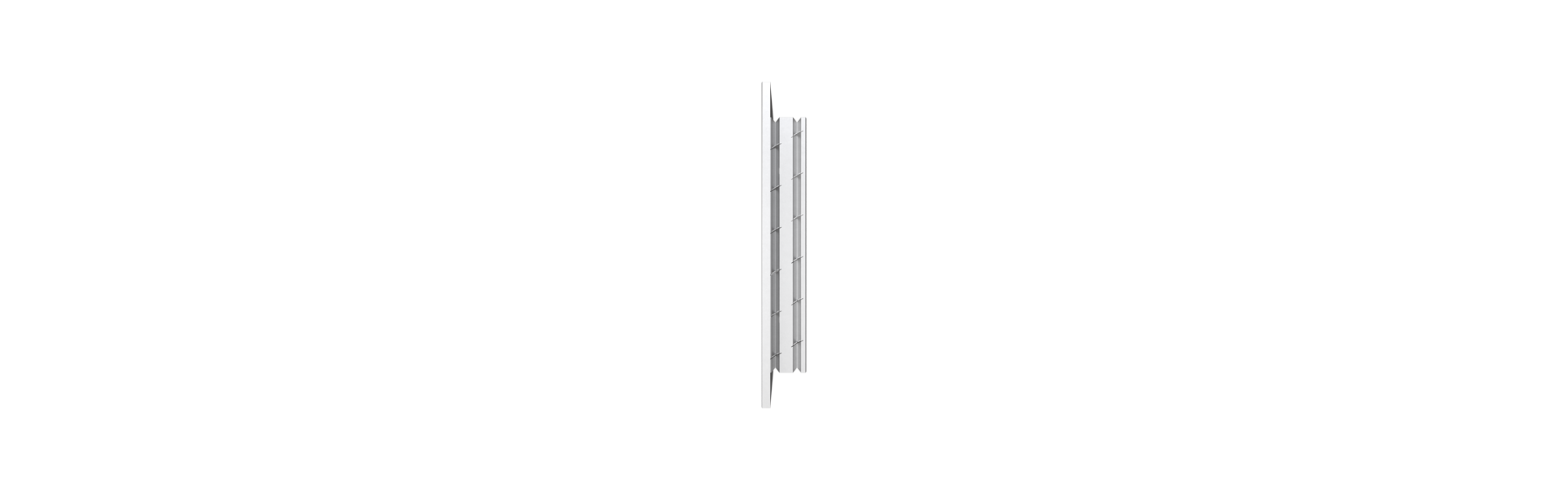

W Weather resistant louvre from the side

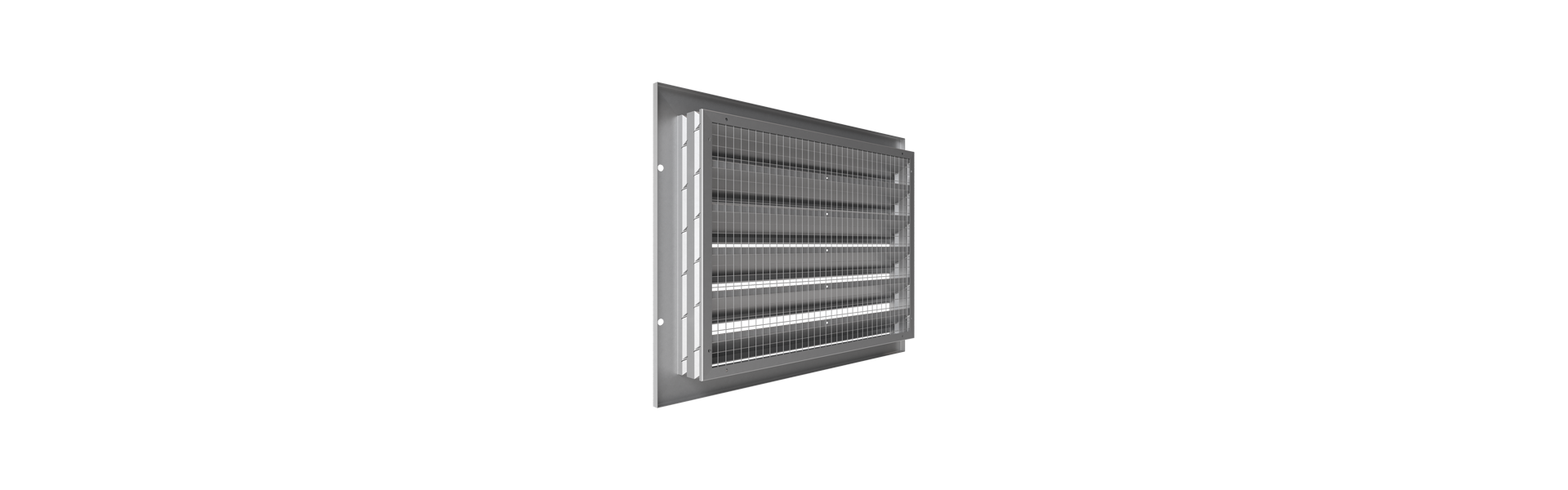

W Weather resistant louvre turned halfway to the right from the rear

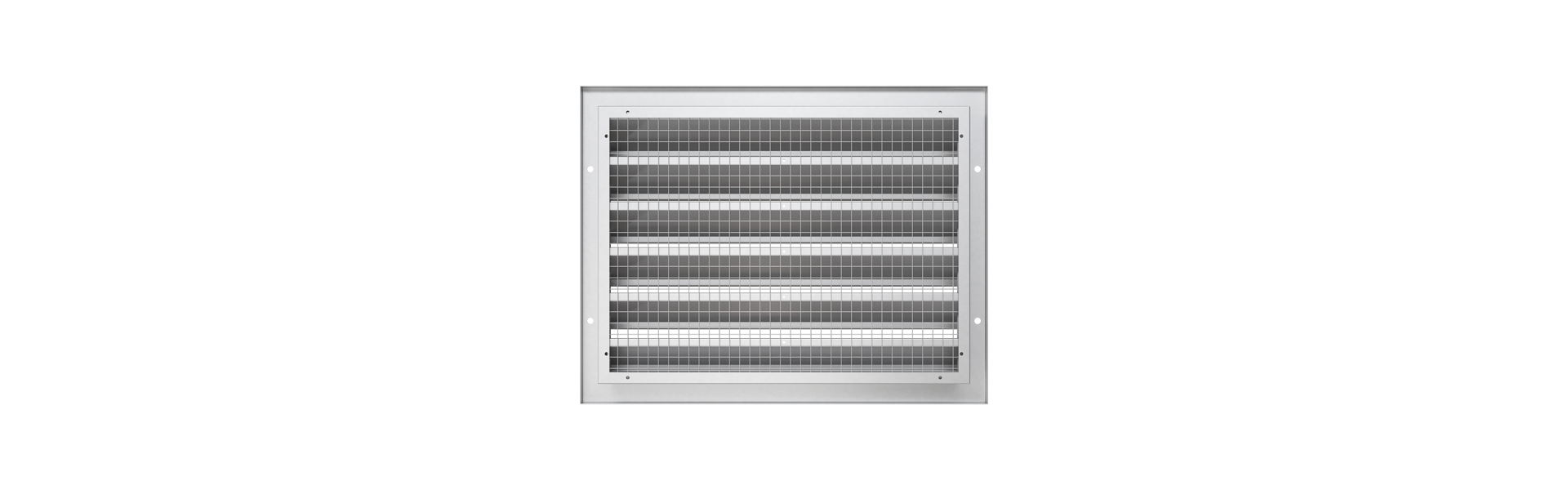

W Weather resistant louvre from rear
AW weather resistant louvre from front

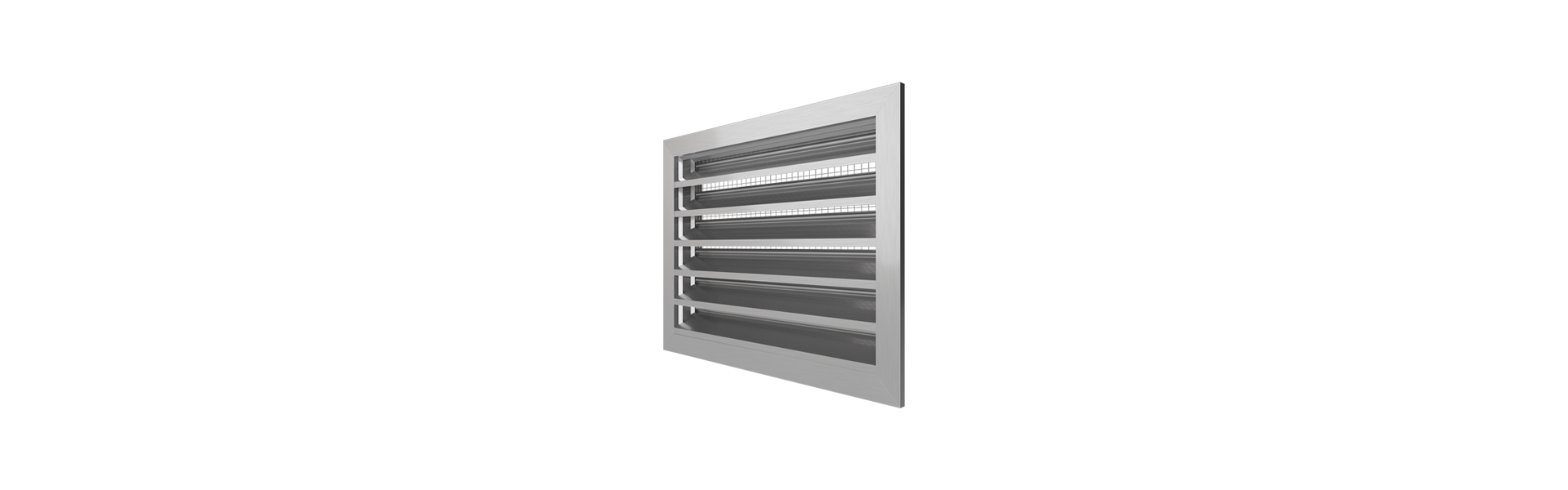

AW weather resistant louvre rotated halfway to the left from the front

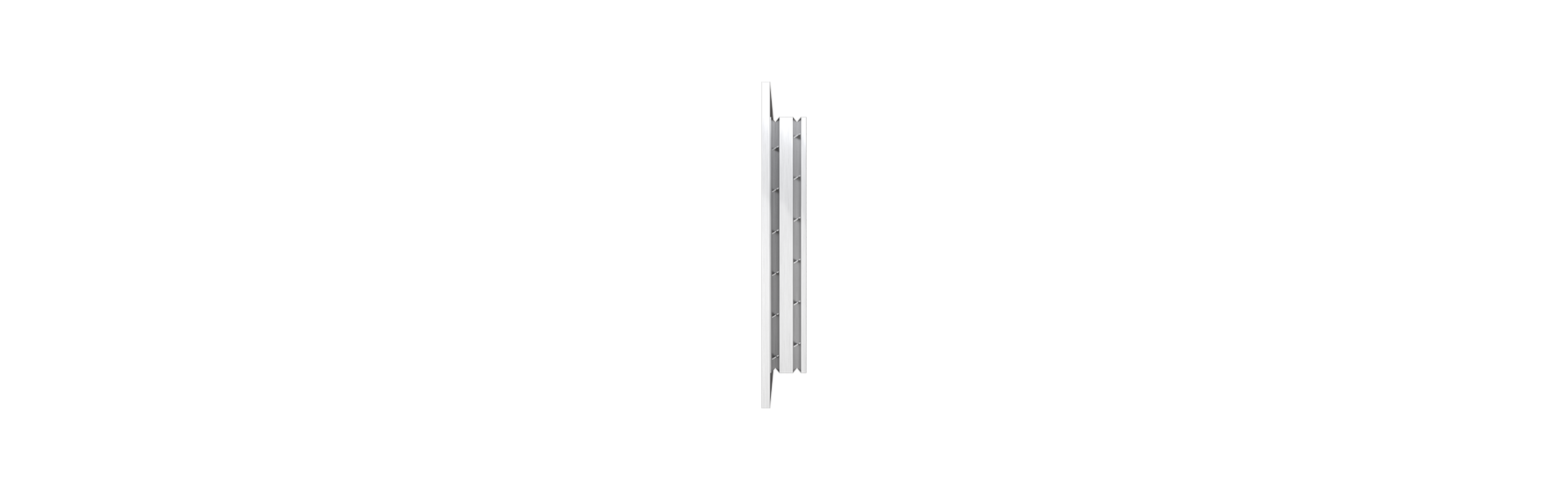

AW buitenluchtrooster vanaf de zijkant

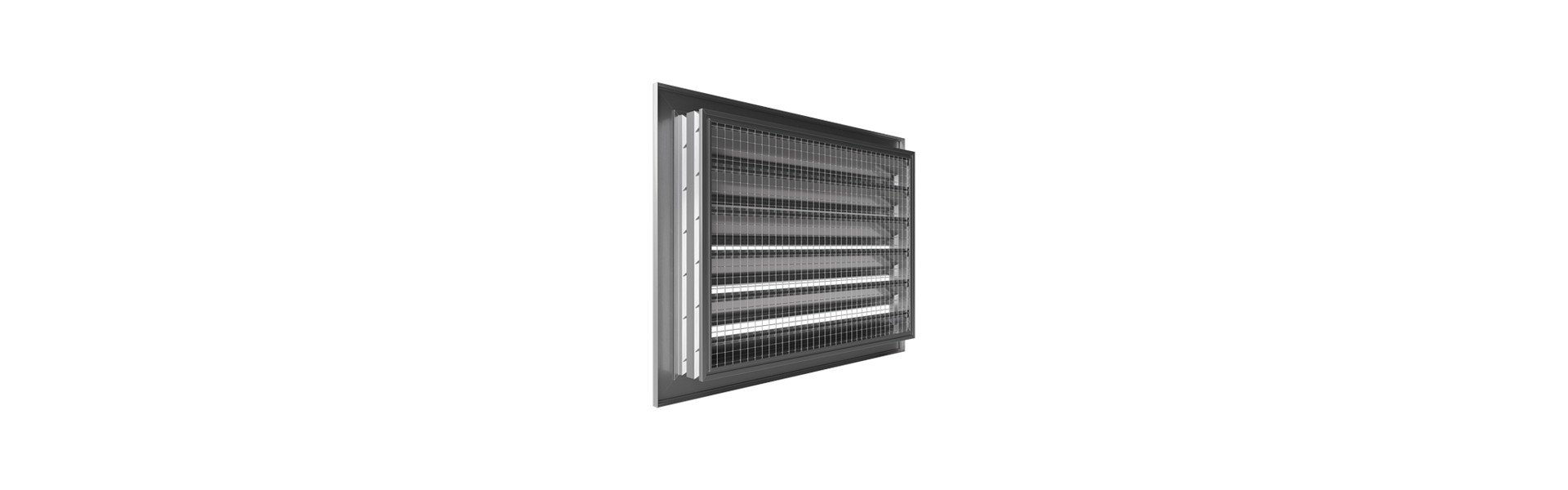

AW weather resistant louvre turned halfway to the right from the rear
AW weather resistant louvre from rear

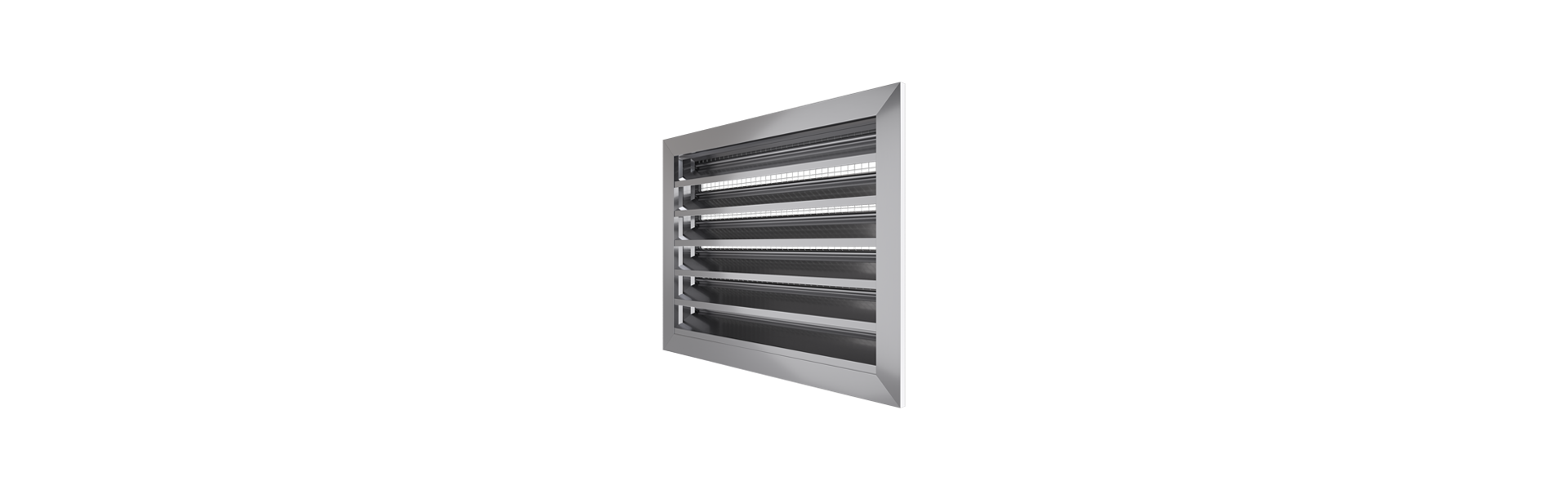

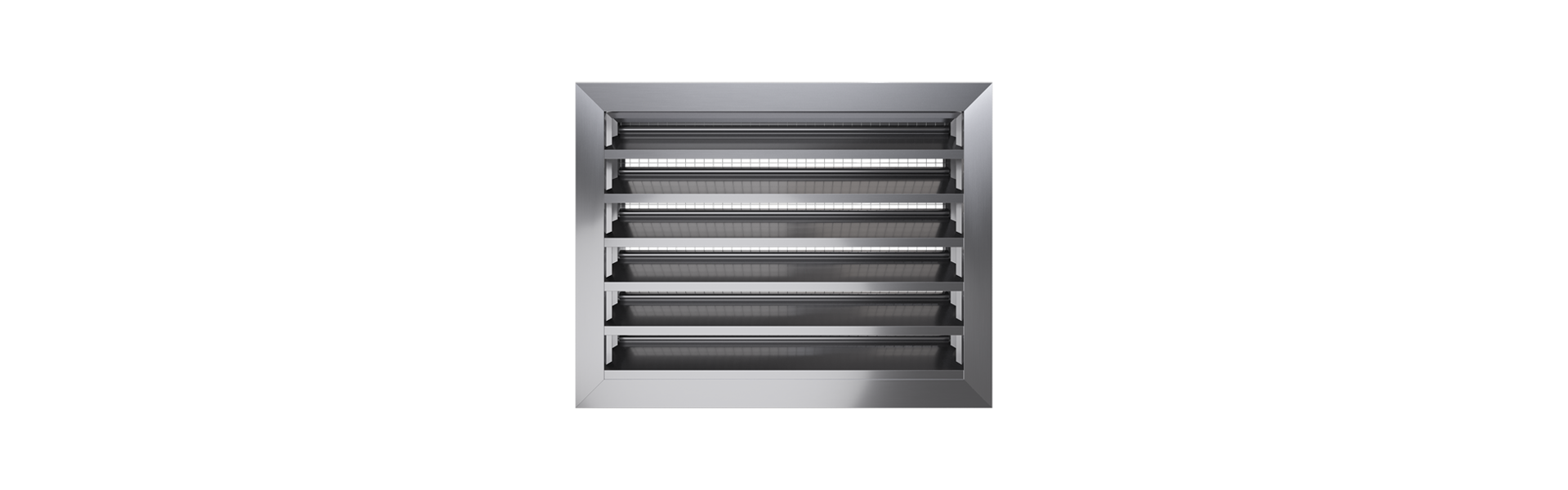

AWE weather resistant louvre from the front

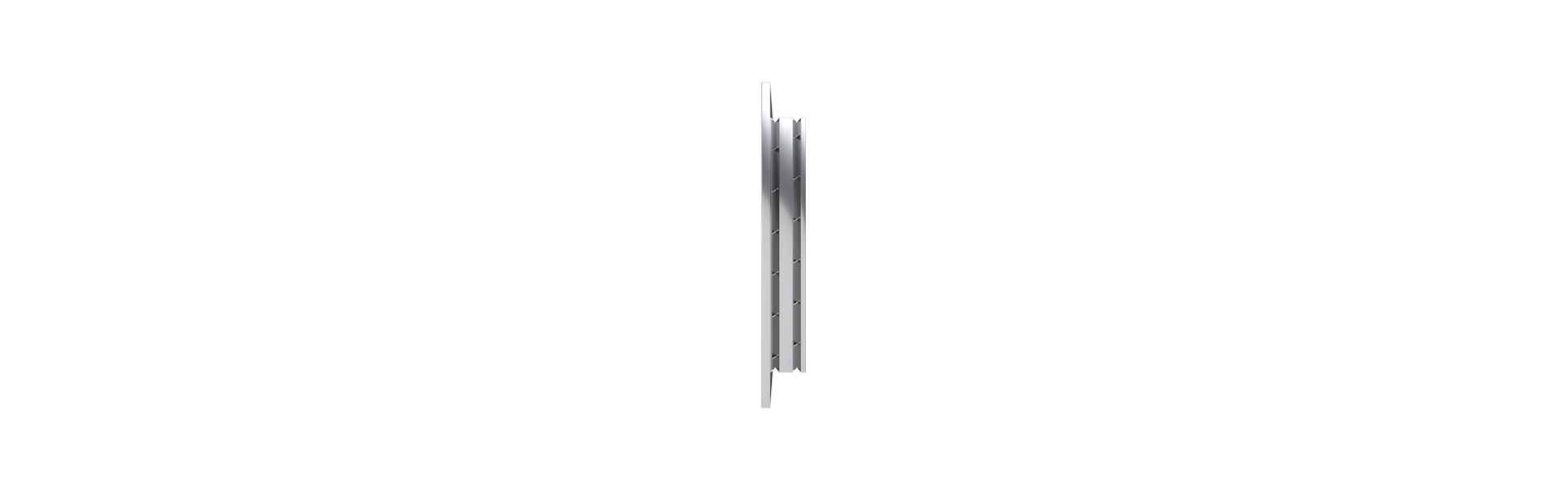

AWE weather resistant louvre from the side

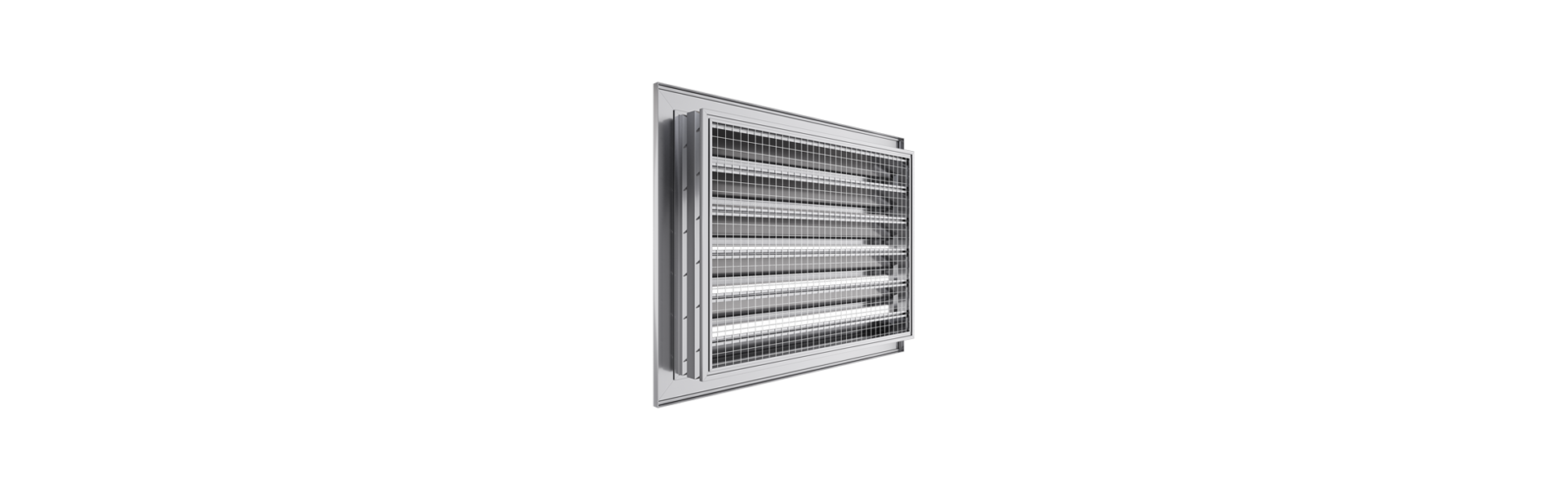

AWE weather resistant louvre turned halfway to the right from the rear

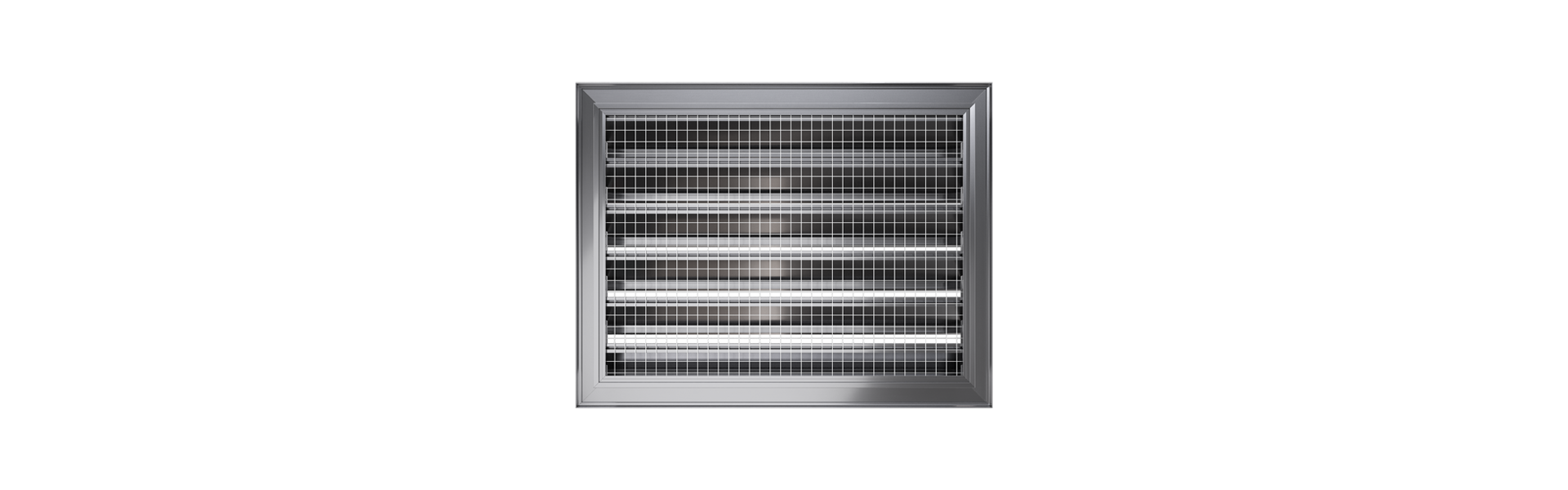

AWE weather resistant louvre from rear
