BS2-BZ-01 BMZ module (fire alarm control panel)
The BS2-BZ-01 fire alarm control panel module enables the connection of on-site alarm devices to the Wildeboer-Net building control system. The module features highly variable connection options and automatic line monitoring.
Technical details
- Connection of on-site signaling devices to the Wildeboer network
- Monitoring of the lines connected to the inputs for faults
- Can be used for sequential controls, trigger group controls, and calendar controls
Product details
The BMZ or BS2-BZ-01 fire alarm control panel module allows on-site alarm devices to be connected to the Wildeboer-Net building control system.
Connection options Fire alarm control panel module
Four inputs for potential-free contacts and two potential-free outputs can be used.
Automated fault monitoring
Special feature: Lines connected to the inputs are automatically monitored for faults. This information can be used for follow-up controls, trigger group controls, and calendar controls, for example.
The system overview tells you what the Wildeboer-Net communication system can do.
Technical specifications
- The modules store data permanently, even in the event of a power failure.
- With Euro plug and 1.5 m connecting duct for direct connection to a 230 V AC socket provided by the customer. Alternatively, the Euro plug on the module can be removed for permanent connection.
- LEDs for displaying operating data.
- Push button for manual operation of basic functions.
- Real-time clock with leap year correction and summer/winter time changeover.
- Four inputs for potential-free contacts. Connections with pluggable screw terminals. Connected cables are monitored by the module for faults.
- Two potential-free outputs (2–30 V DC, 10 µA–2 A). Connections with pluggable screw terminals. Slots (spring-loaded terminals) for the resistors for monitoring the transmission paths on site.

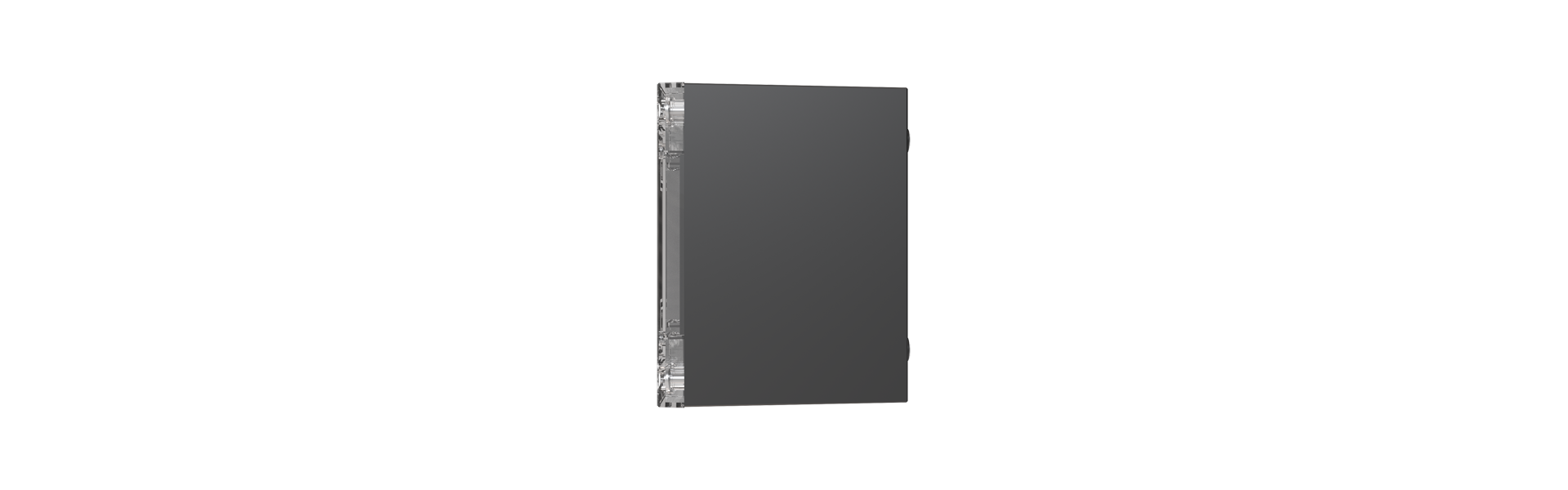

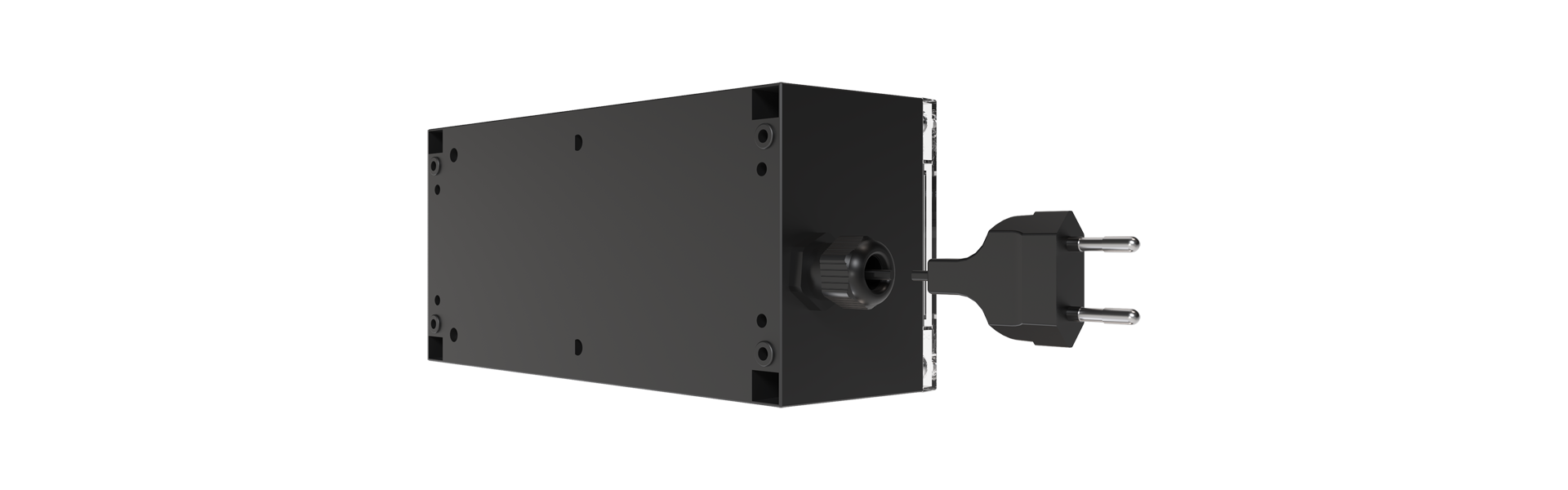

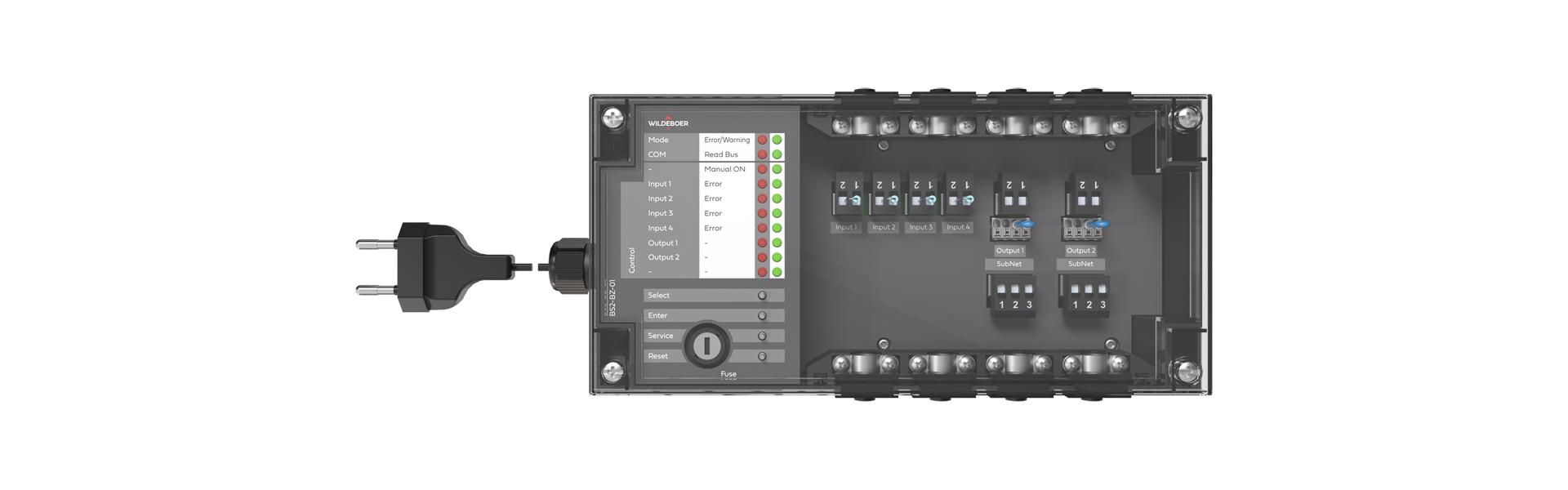

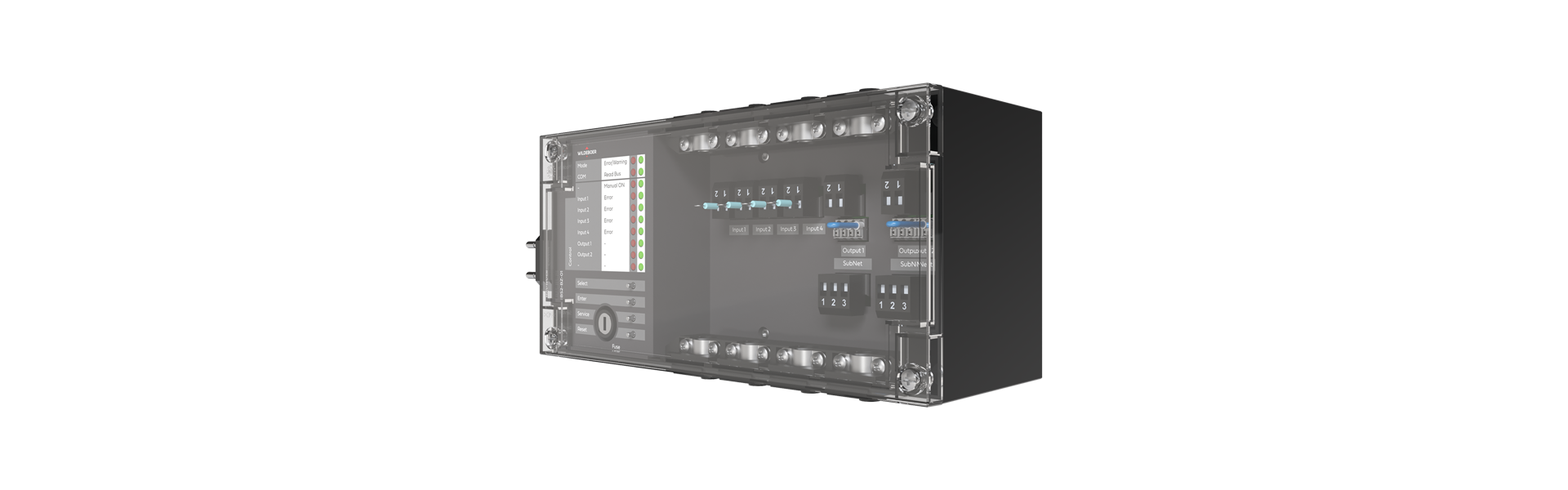

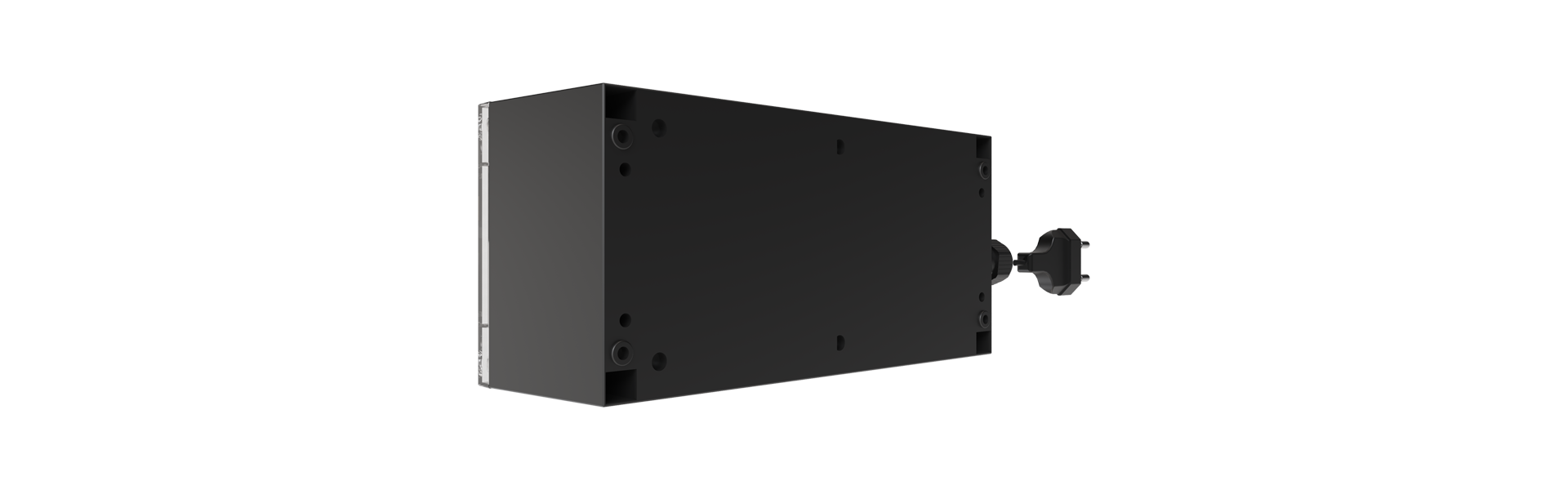

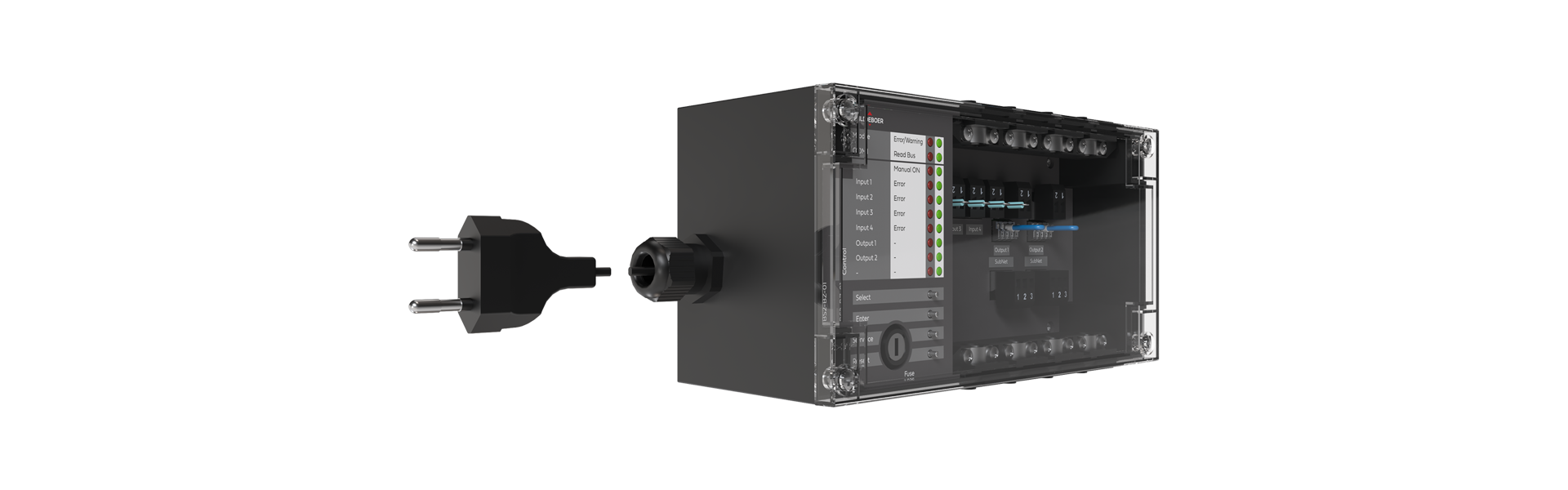

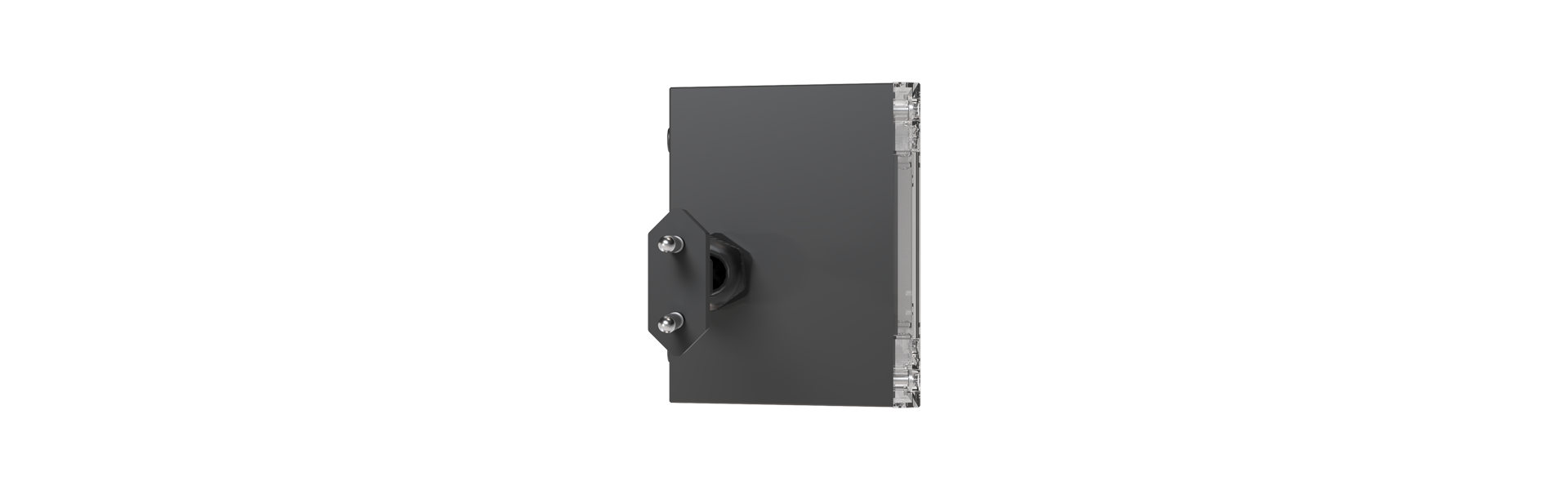

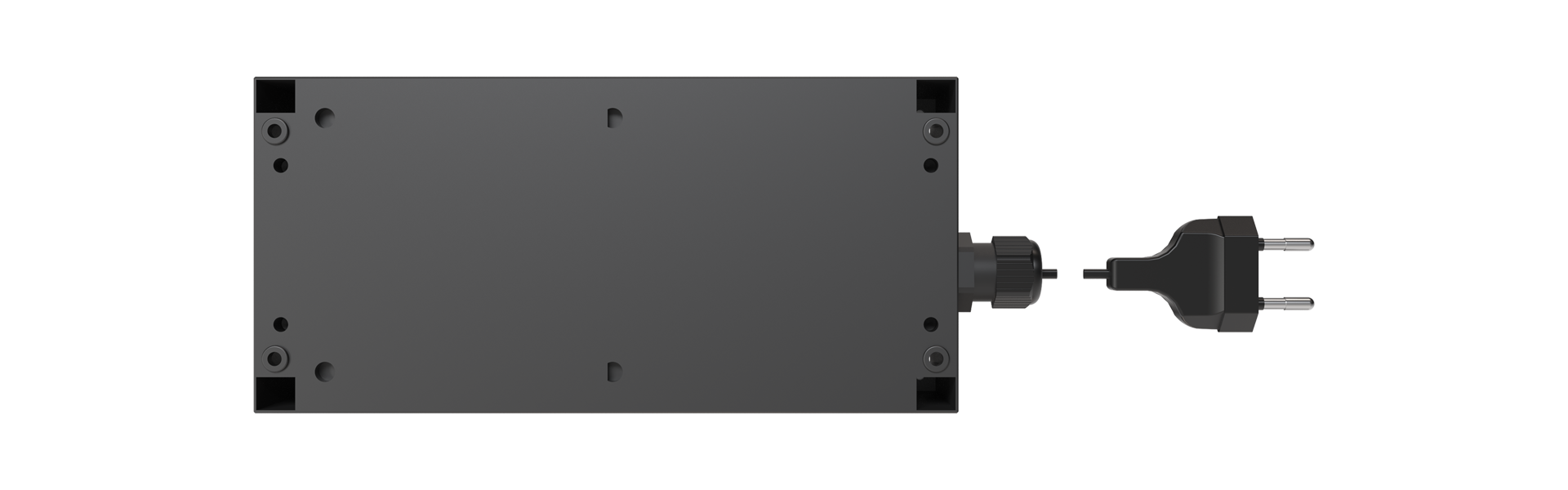

Product pictures
