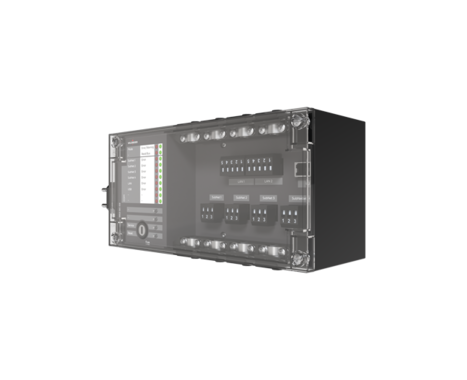

BS2-SC-02 subnet controller
The BS2-SC-02 subnet controller controls, regulates and monitors CAN-BUS data communication in the Wildeboer Net building control system with up to four subnets and up to 32 modules each. All linked data is conveniently transmitted to a central operating unit via Ethernet.
Technical details
- Enables cross-system trigger groups
- Automatically detects and addresses connected modules
- Detects and localizes faults, interruptions, and short circuits
- Initiates residual BUS operation
- Activities and functions are performed remotely or via push buttons on the module
Product details
Subnet controllers control, regulate, and monitor CAN-BUS data communication in up to four subnets with up to 32 modules each. Data is transmitted via Ethernet to a central control unit.
The BS2-SC-02 enables cross-system trigger group characteristics. This makes it possible to parameterize trigger groups across systems within the Wildeboer network.
Automatic detection of modules and faults
Subnet controllers detect and address all connected modules, such as motor modules or IO modules, automatically. They detect and localize faults, interruptions, and short circuits and initiate automatic residual bus operation.
Once the causes have been eliminated, full operation is automatically restored.
All activities and functions are performed remotely or via the push buttons on the module.
Product features Subnet controller
- 4 galvanically isolated CAN-BUS connections with screw terminals.
- Data line: twisted pair 1 x 2 x 0.34 mm², 120 Ω, shielded. Length to the next module up to 100 m.
- Ethernet connections with integrated switch.
- Data cable: at least CAT 5. Length to the control unit up to 100 m.
The system overview tells you what the Wildeboer-Net communication system can do.

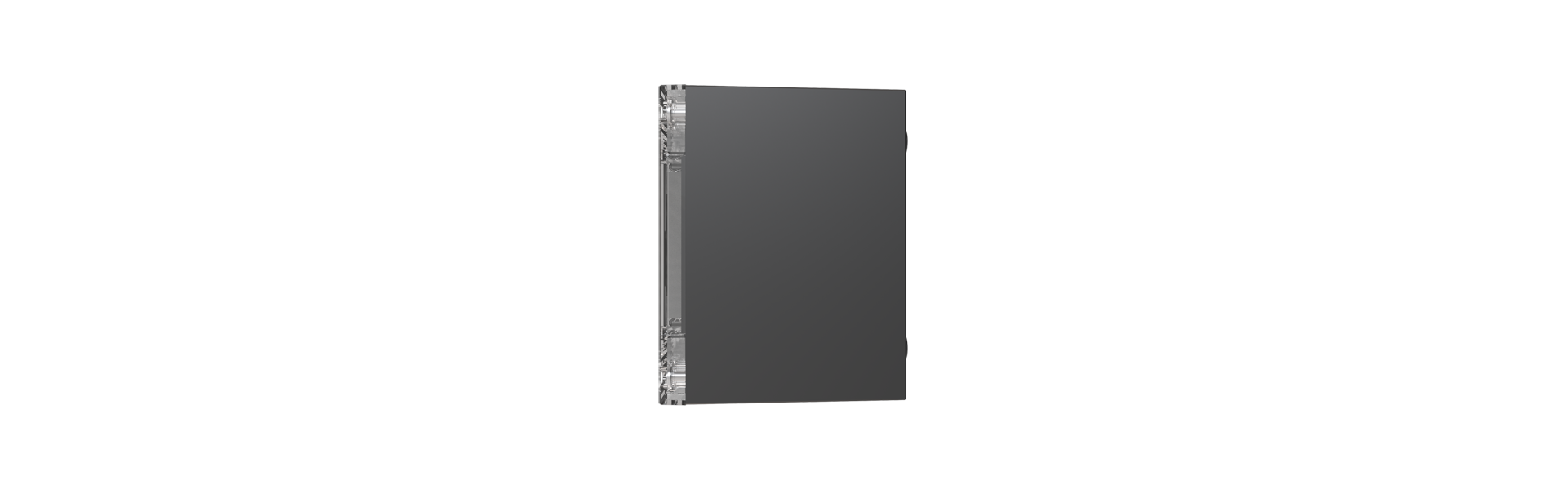

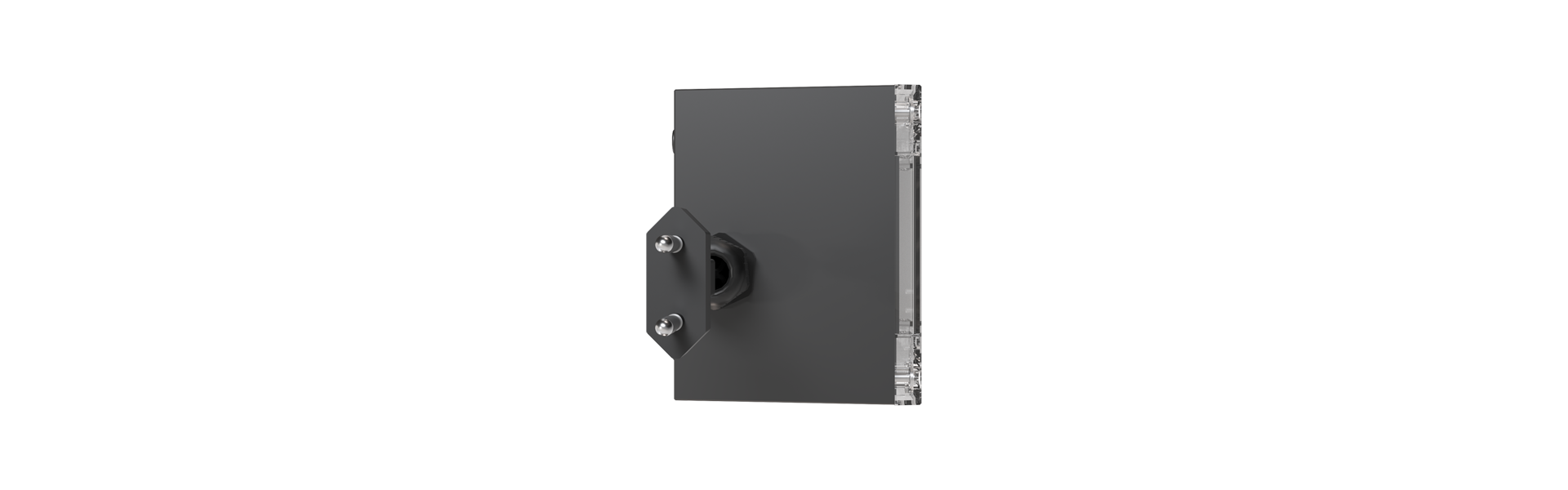

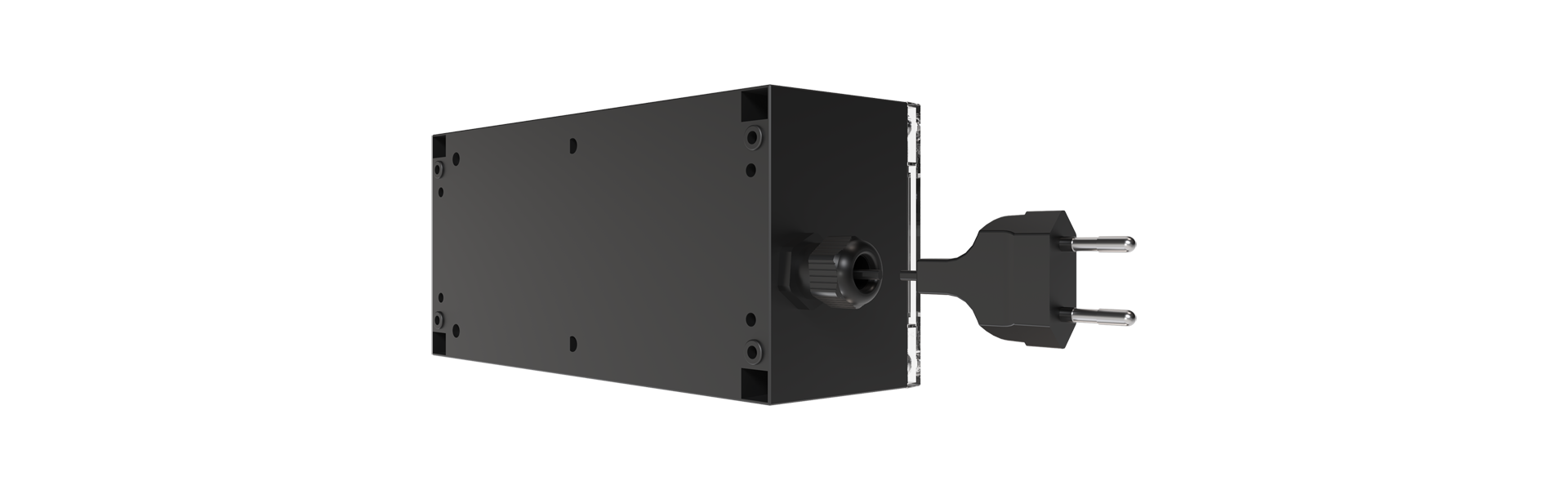

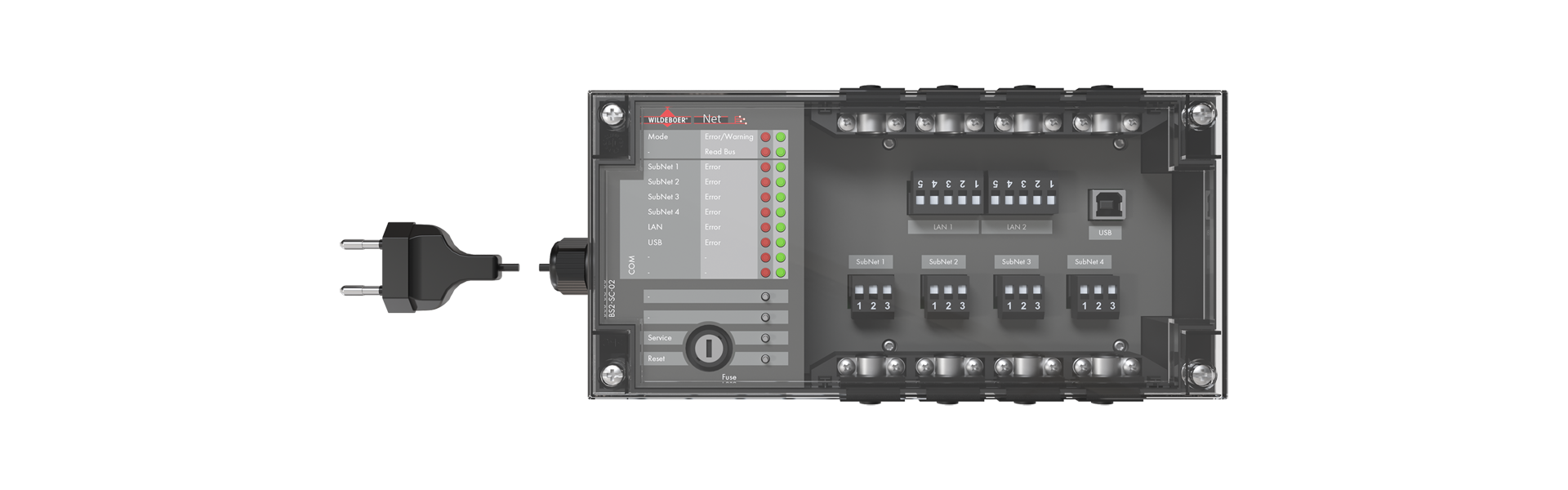

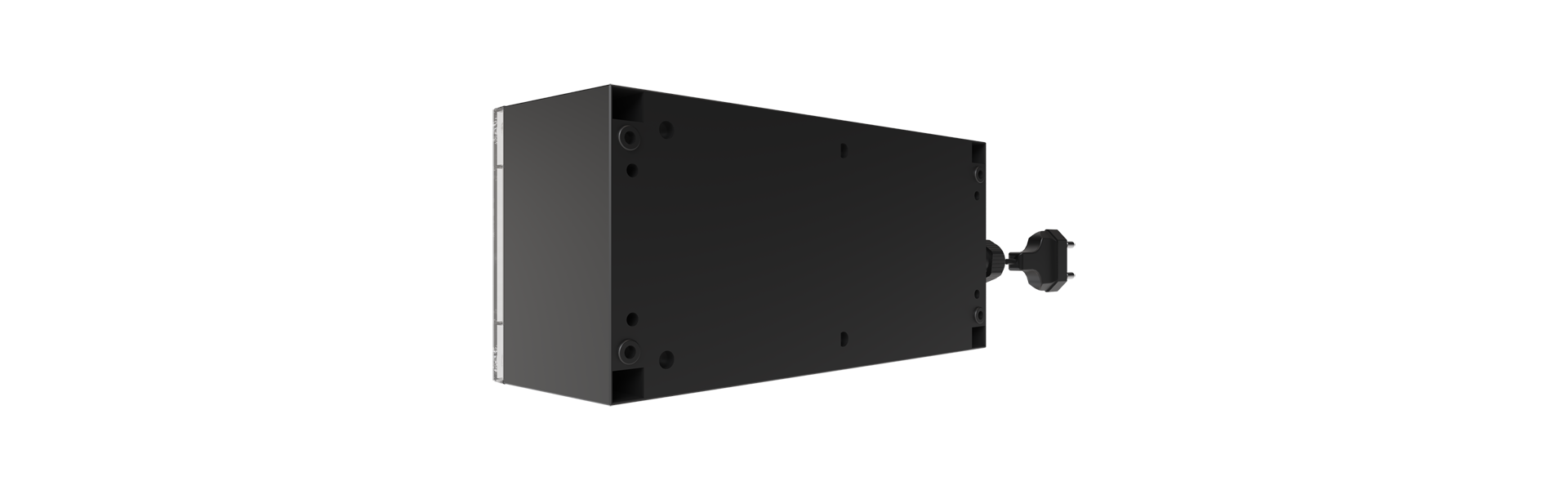

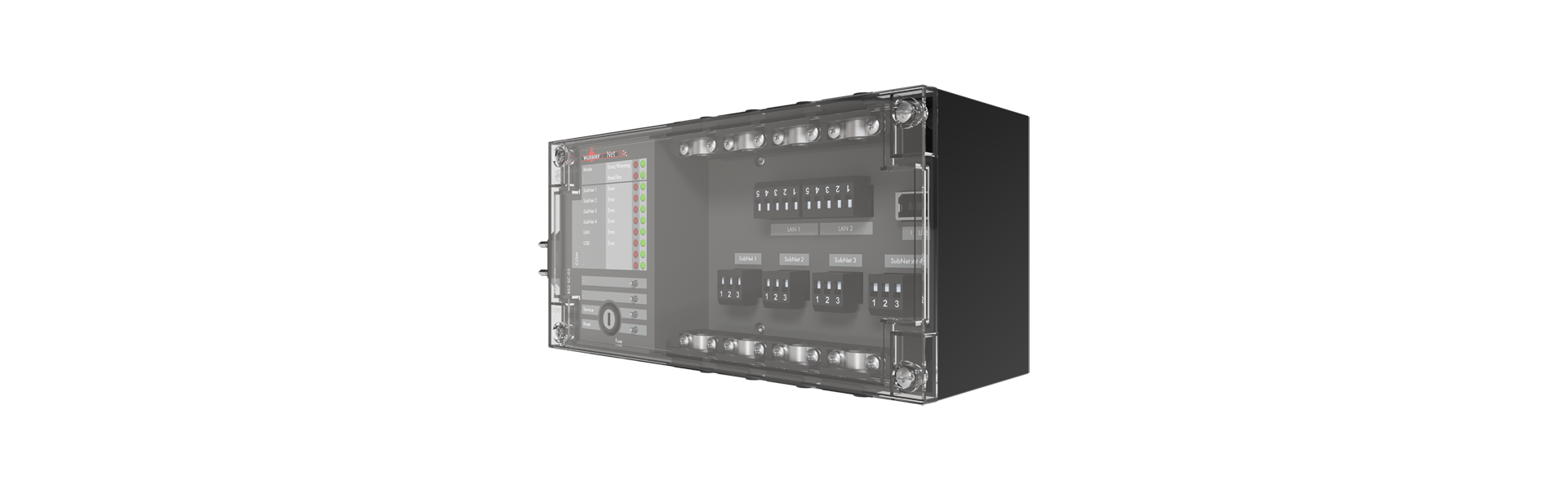

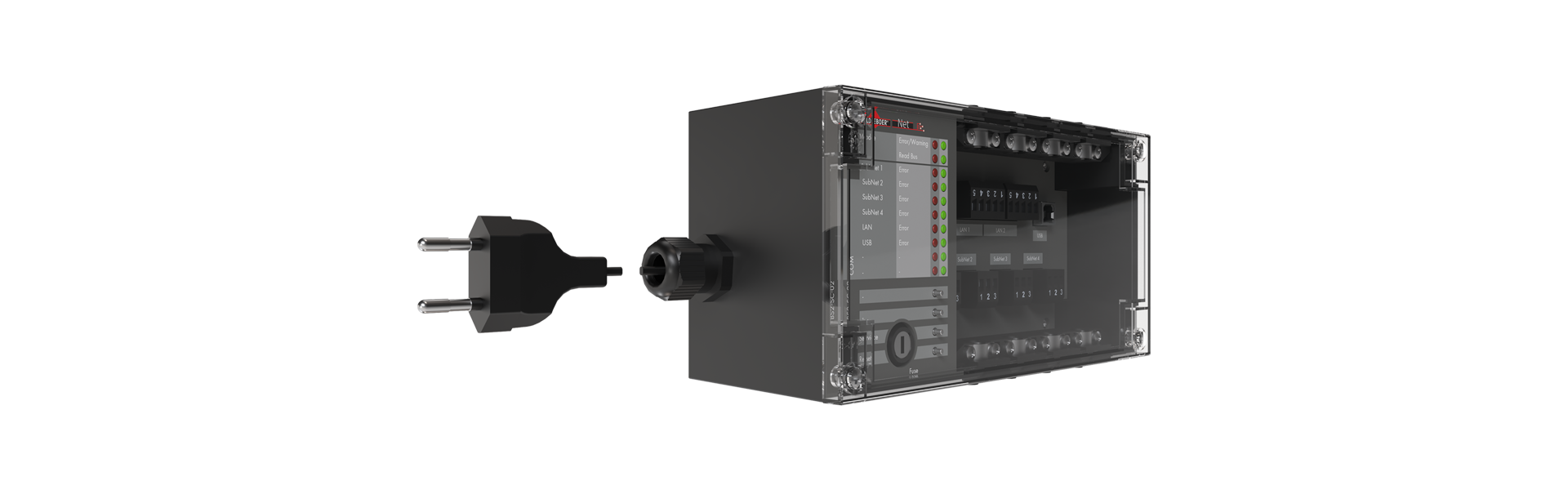

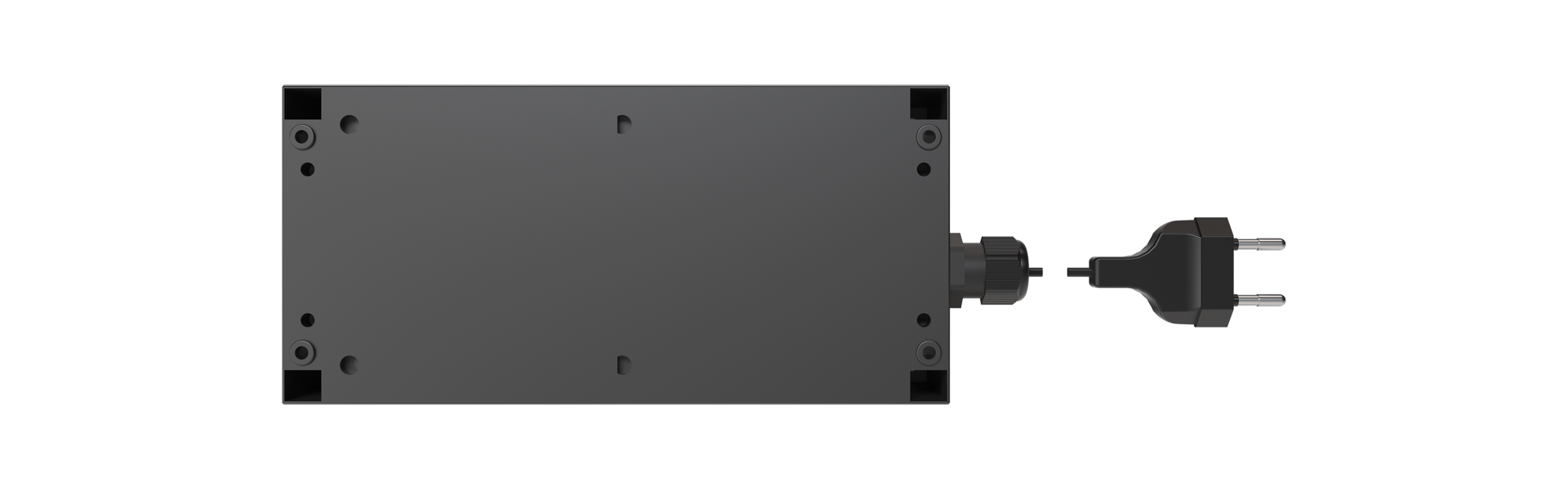

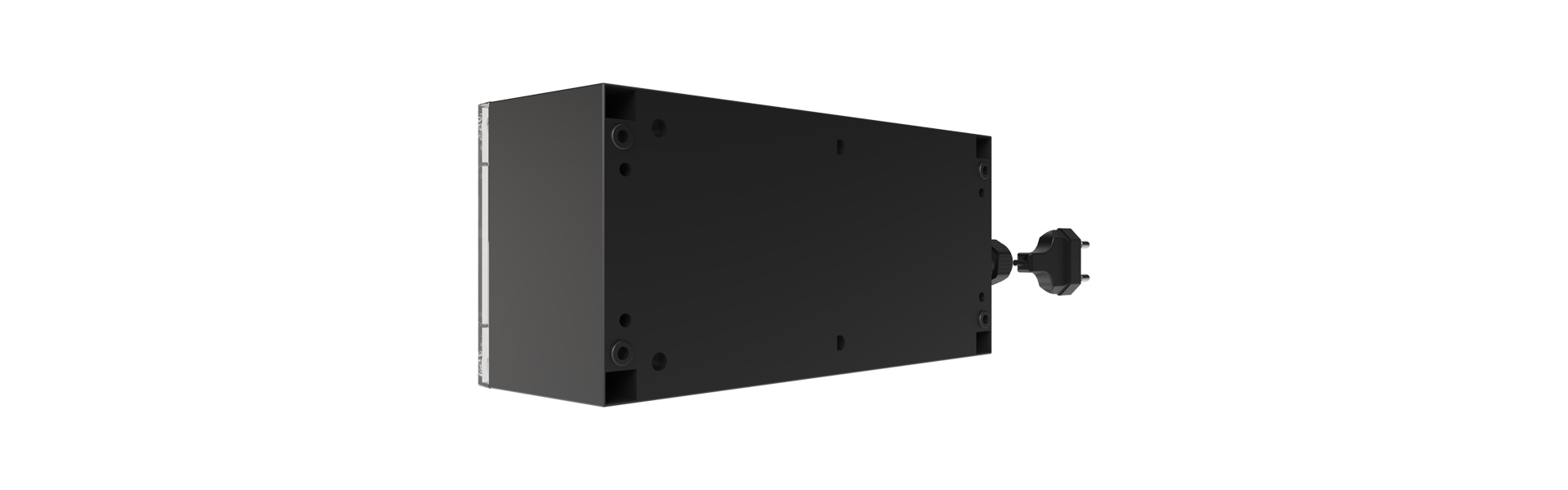

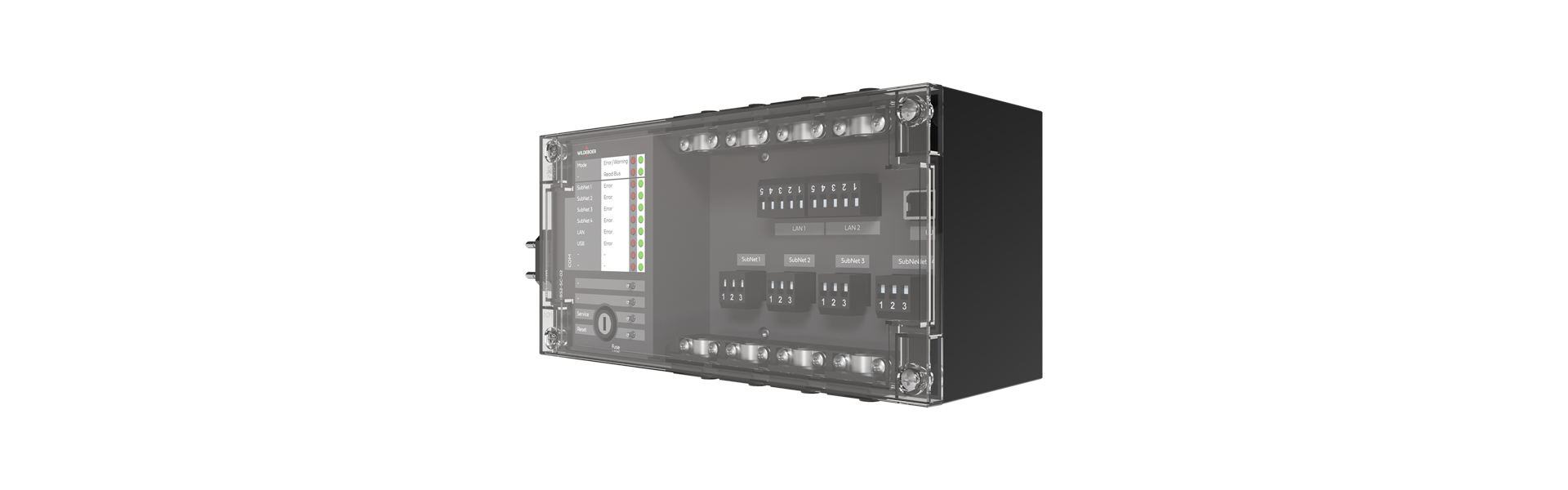

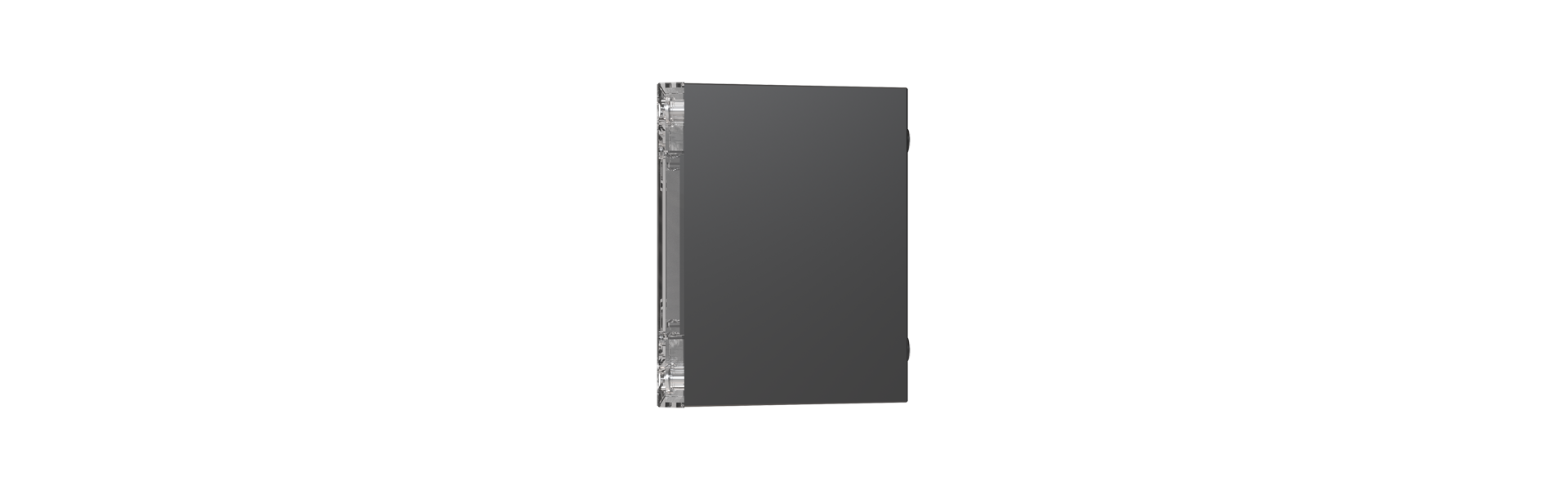

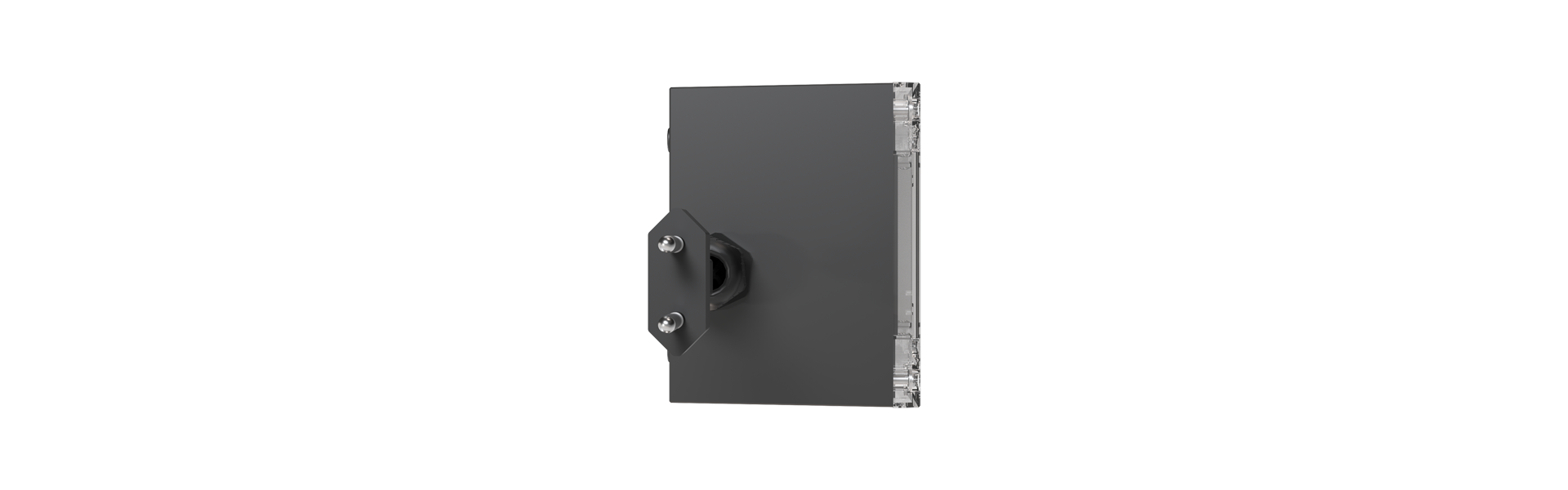

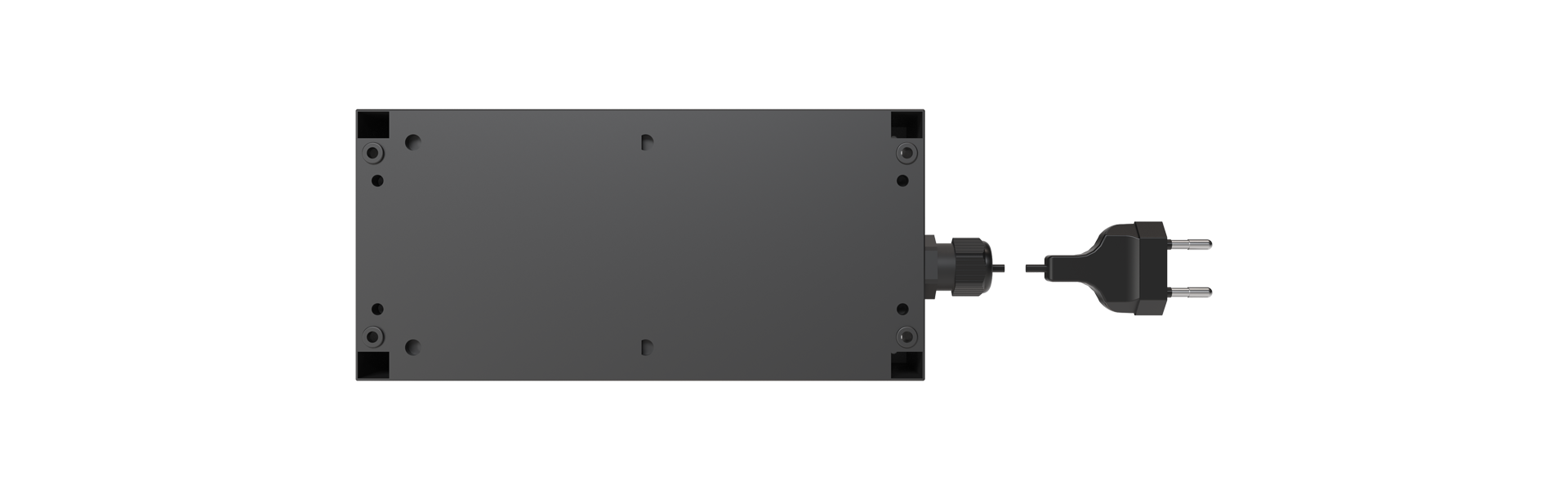

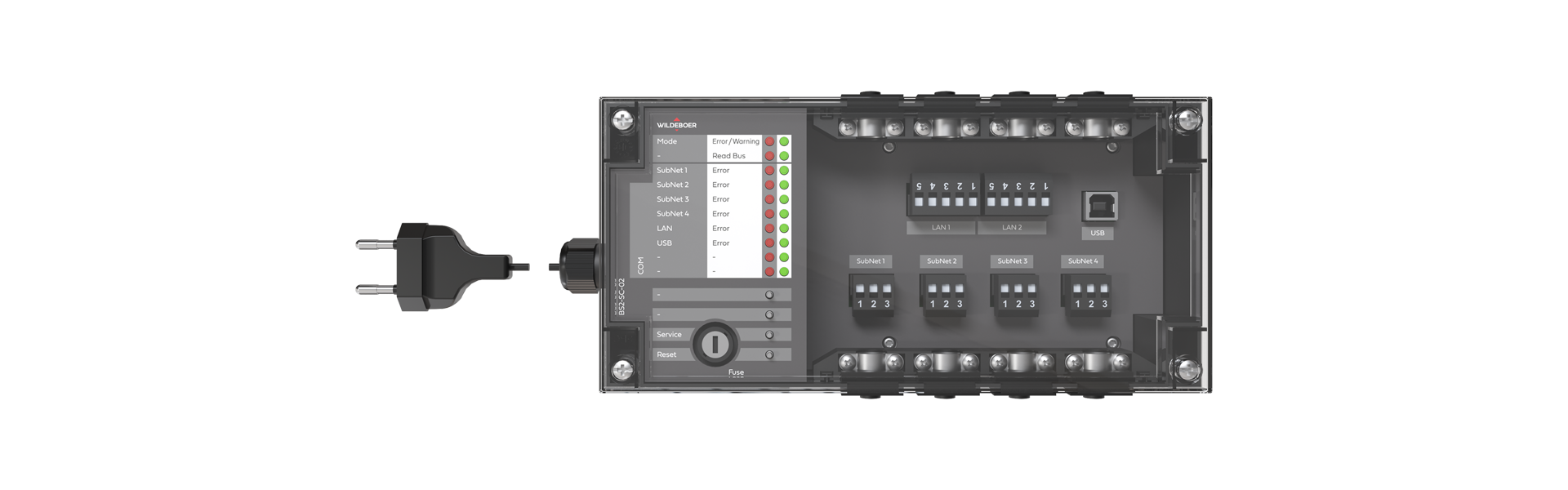

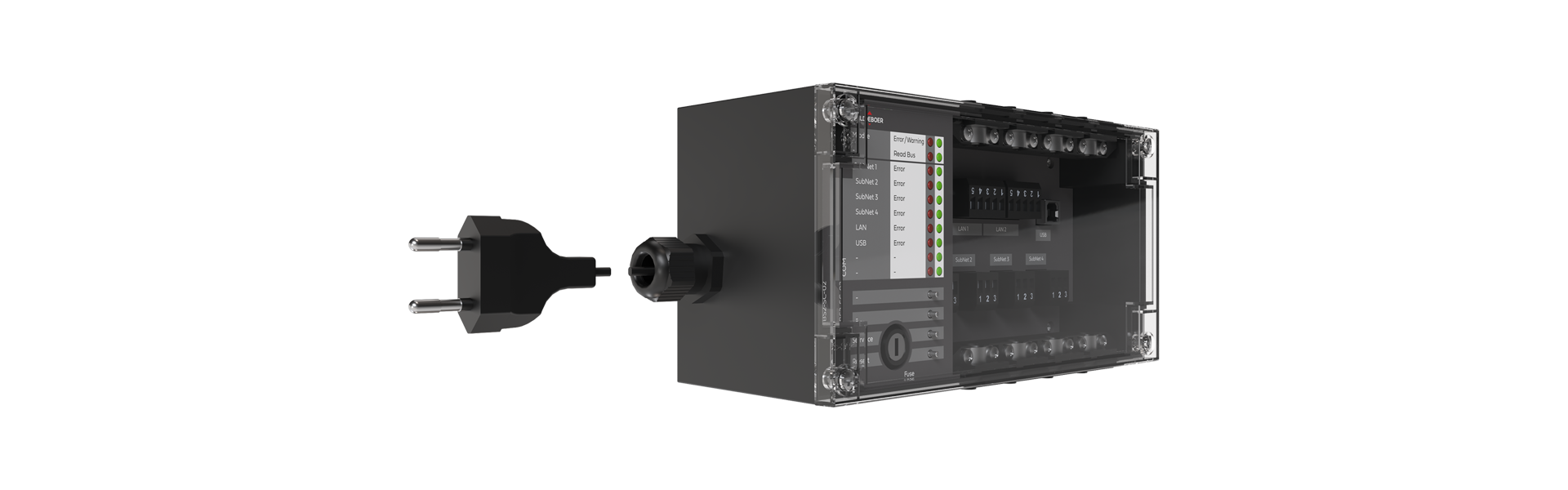

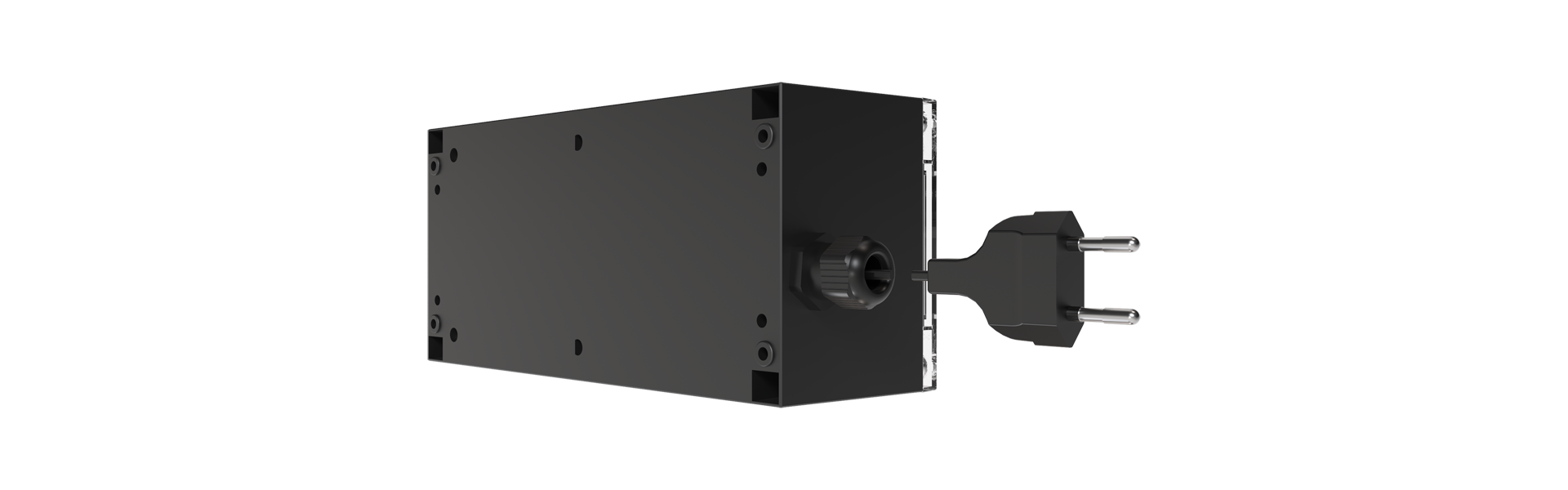

Product pictures
