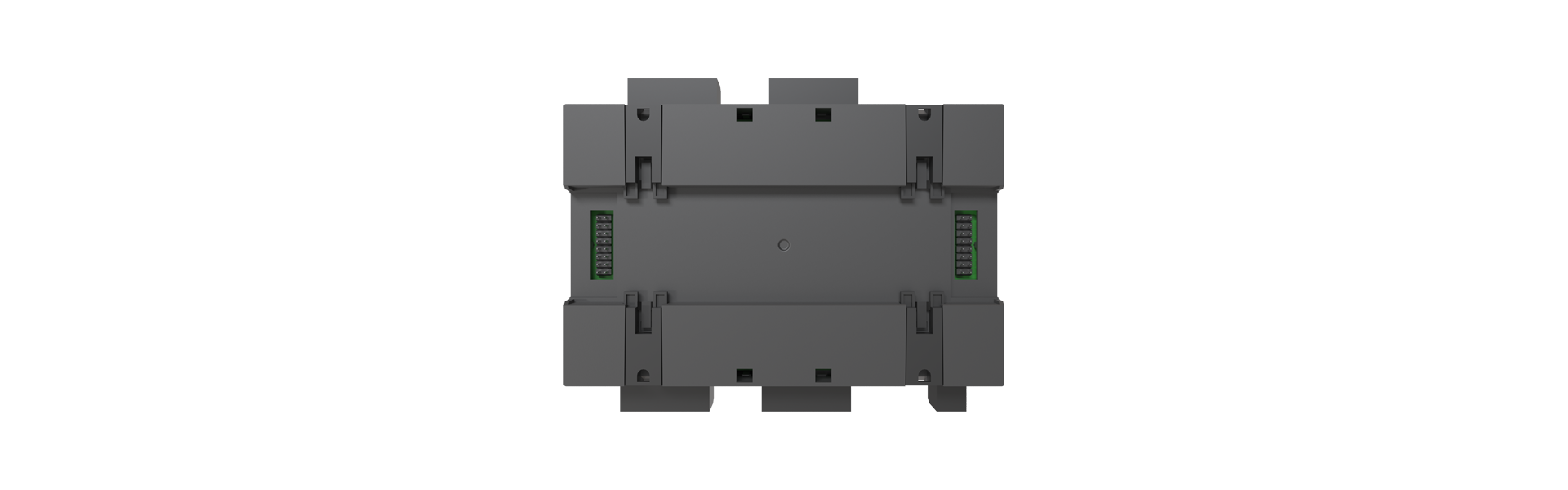

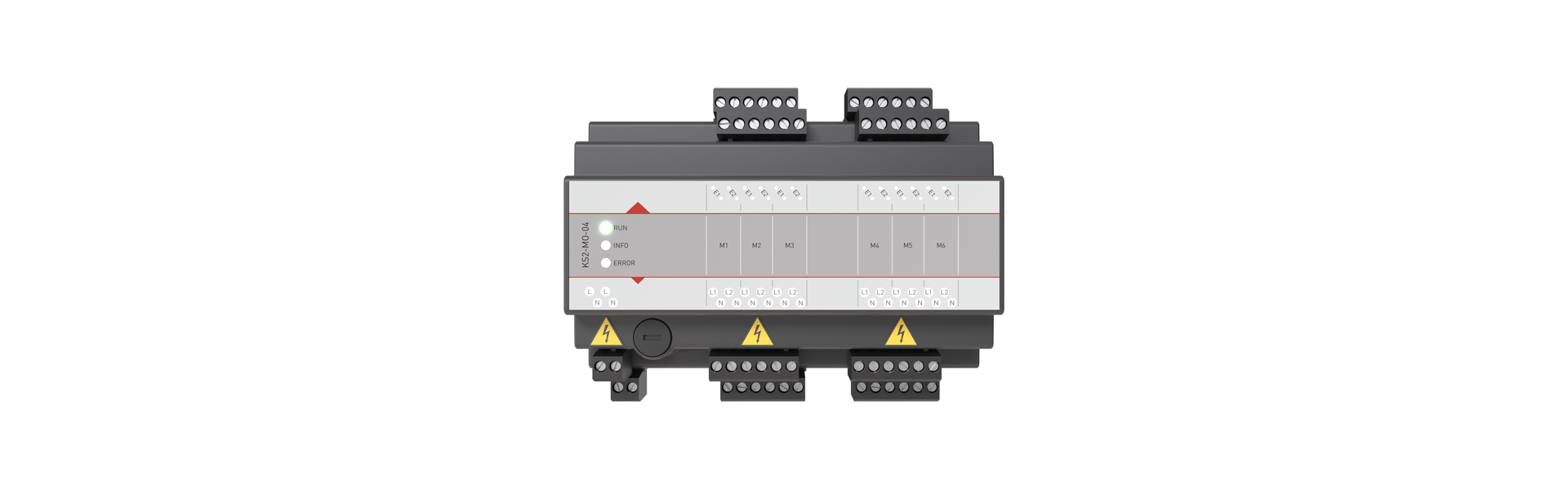

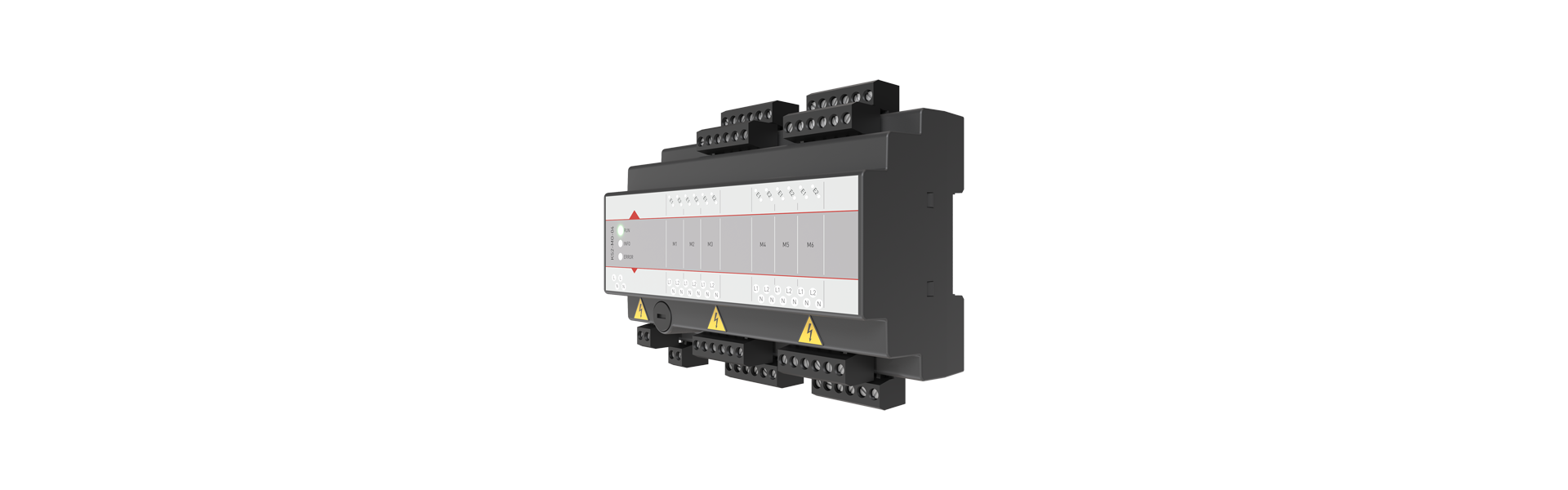

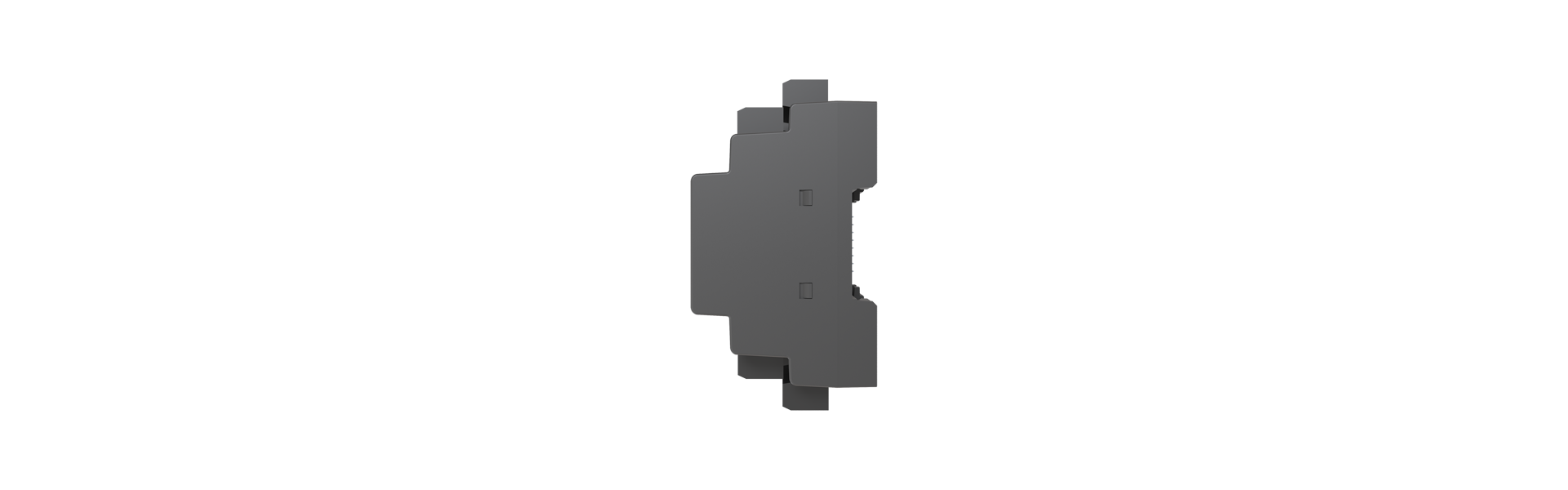

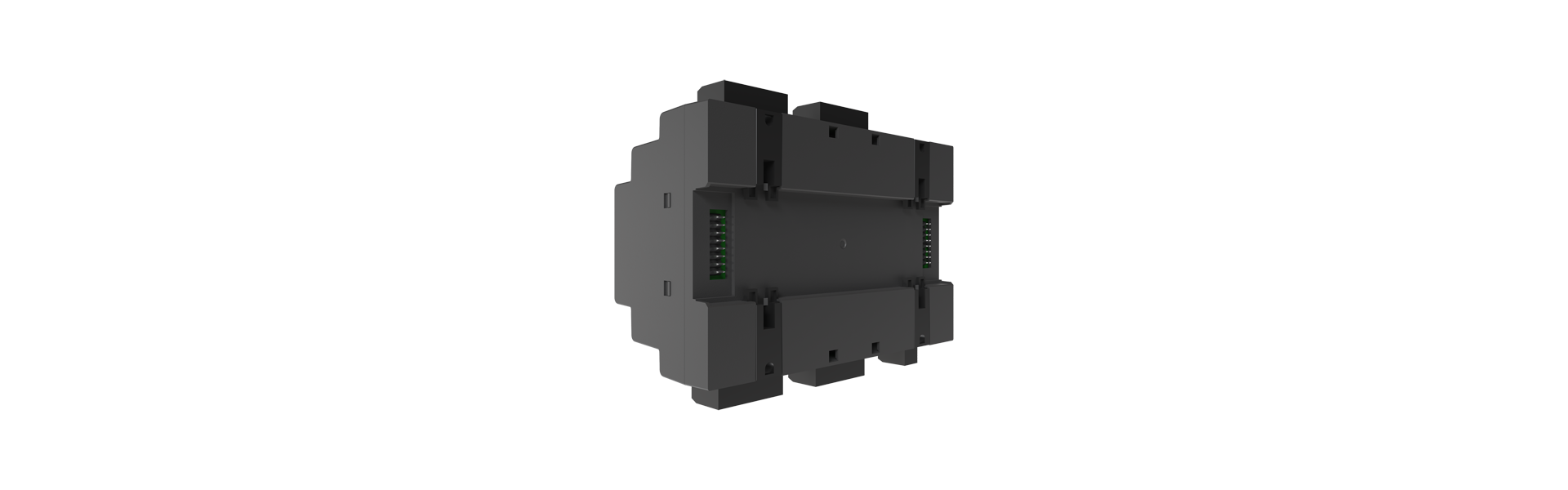

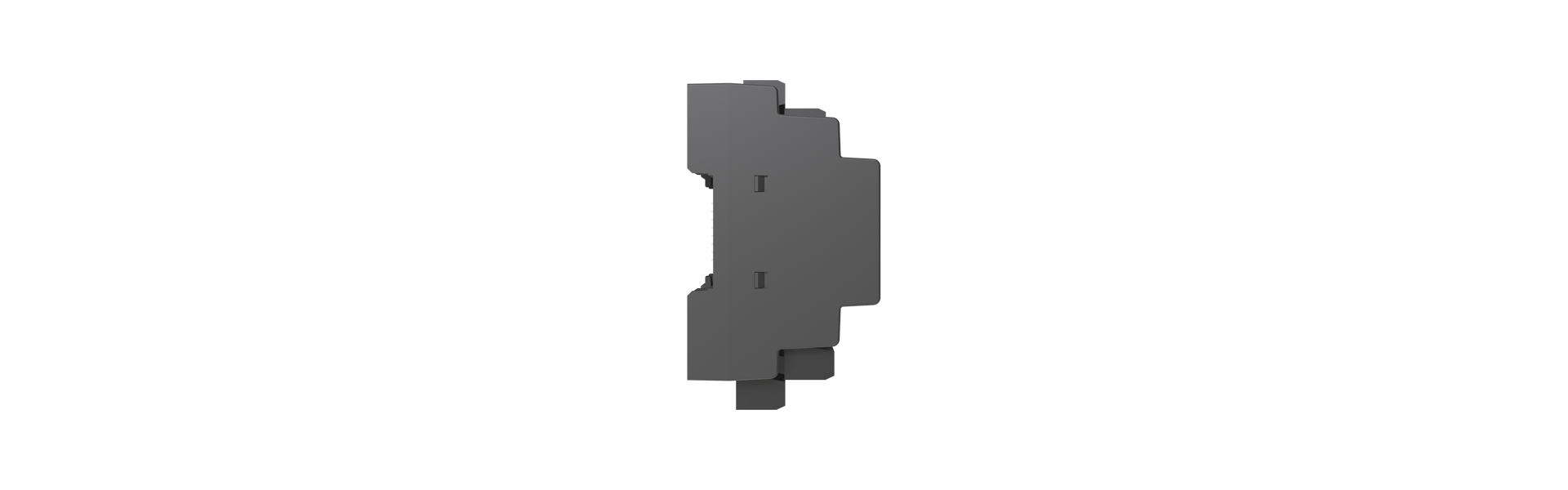

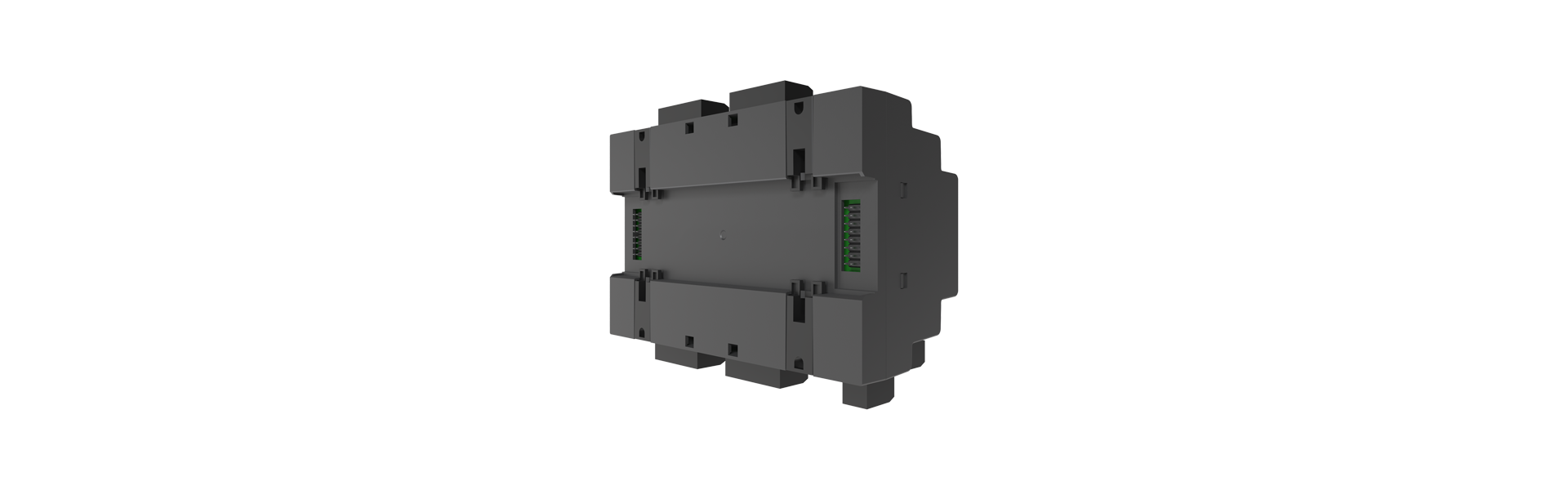

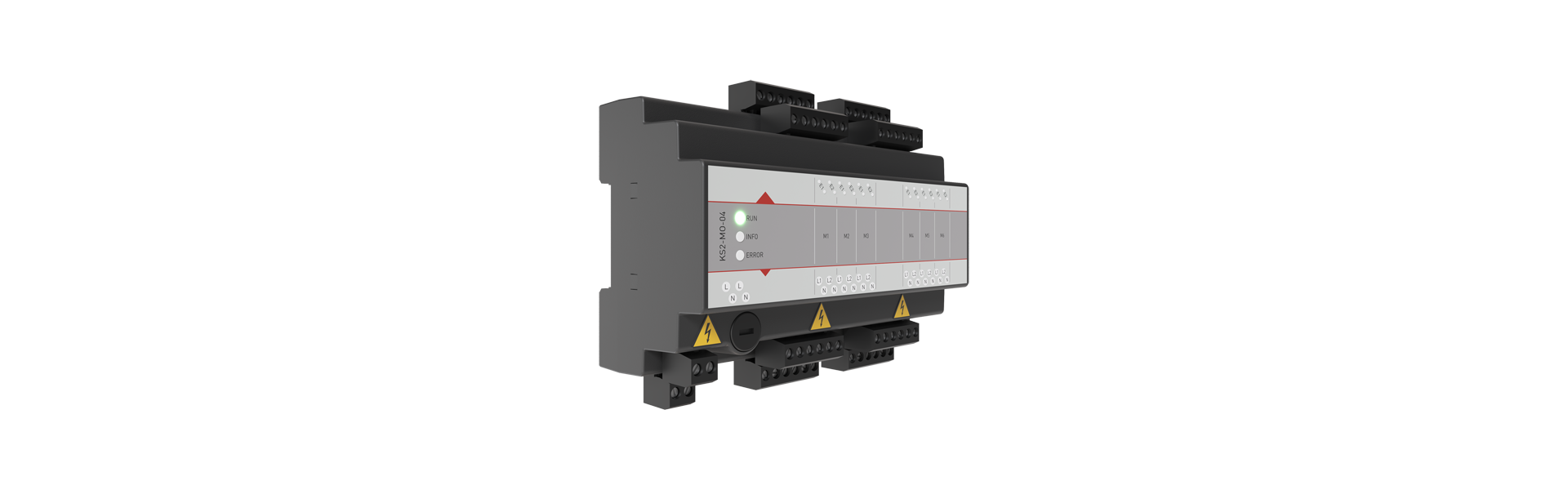

KS2-MO-04 motor module

The KS2-MO-04 motor module is used in the KS2 compact control unit to connect, control, and monitor up to six fire dampers, multileaf dampers, or smoke protection dampers with 230 V AC or 24 V AC/DC spring return actuators and integrated limit switches.

The KS2 compact control unit is part of the Wildeboer-Net complete system and is used to control and monitor fire protection and ventilation components in buildings.

Automatic functional tests

Motor modules monitor the operation of these dampers by checking their functionality through automatic functional tests.

The dampers are completely closed and completely reopened. The running times of the motors are measured and fail-safely logged, and any changes are detected.

Calendar controls

All inputs and outputs of the KS2 motor module can be integrated into calendar controls. This allows the functional tests to be carried out automatically at defined times or at fixed intervals. Functional tests on site can thus be replaced. An exception to this is tests in accordance with state testing regulations.

Trigger groups

In order to ensure the internal compartmentalization of a building in the event of a fire, additional fire dampers must often close when a fire damper or smoke detector is triggered. Trigger groups are formed for this purpose.

The inputs and outputs of the KS2-MO-04 can be integrated into trigger groups with little effort. The control scenarios required for internal compartmentalization to keep smoke out, as prescribed by building regulations, can thus be parameterized quickly and flexibly.

Connection options Motor Module

• Fire dampers with spring return actuators and integrated limit switches
• Multileaf dampers with spring return actuators and integrated limit switches
• Smoke protection dampers with spring return actuators and integrated limit switches
