KS2-MIO-01 multi-IO module
KS2 compact control unit

KS2-MIO-01 Multi-IO module

The KS2-MIO-01 multi-input/output module expands the inputs and outputs for on-site sensors or actuators. It has multifunctional inputs and outputs as well as signal relay outputs. This allows on-site sensors and actuators, such as the fire alarm control panel or building management system, to be connected to the KS2 compact control unit.

Technical details

  • Connection of actuators and sensors provided by the customer
  • Configurable via Wildeboer-Net software
  • Line monitoring for connected potential-free relay contacts

Product details

The KS2-MIO-01 multi-input/output module of the KS2 compact control unit has multifunctional inputs and signal relay outputs. This allows the KS2 system to be conveniently connected to on-site sensors and actuators, such as the fire alarm control panel or building management system.

The KS2 compact control unit is part of the Wildeboer-Net complete system and is used to control and monitor fire protection and ventilation components in buildings.

Trigger groups

In order to ensure the internal compartmentalization of a building in the event of a fire, the triggering of a fire damper or smoke detector often requires other fire dampers in a fire protection area to close. With the KS2 compact control unit, software-supported trigger groups can be formed for this purpose.

The multifunctional inputs of the KS2-MIO-01 module can be integrated into trigger groups with little effort. The control scenarios required for internal partitioning to keep smoke out, as prescribed by building regulations, can thus be parameterized very quickly and extremely flexibly.

Calendar controls

All inputs and outputs can also be integrated into calendar controls to automatically execute product-specific actions at defined times or at fixed intervals.

Connection options Multi I/O module

  • Fire dampers with thermal-mechanical release device (TMA) with limit switches
  • Fire protection valves with limit switches
  • Sensors and actuators
  • Interface to building management system and/or fire alarm control panel
  • Monitored, wired transmission paths

Discover all the advantages of our new product here!

Product pictures

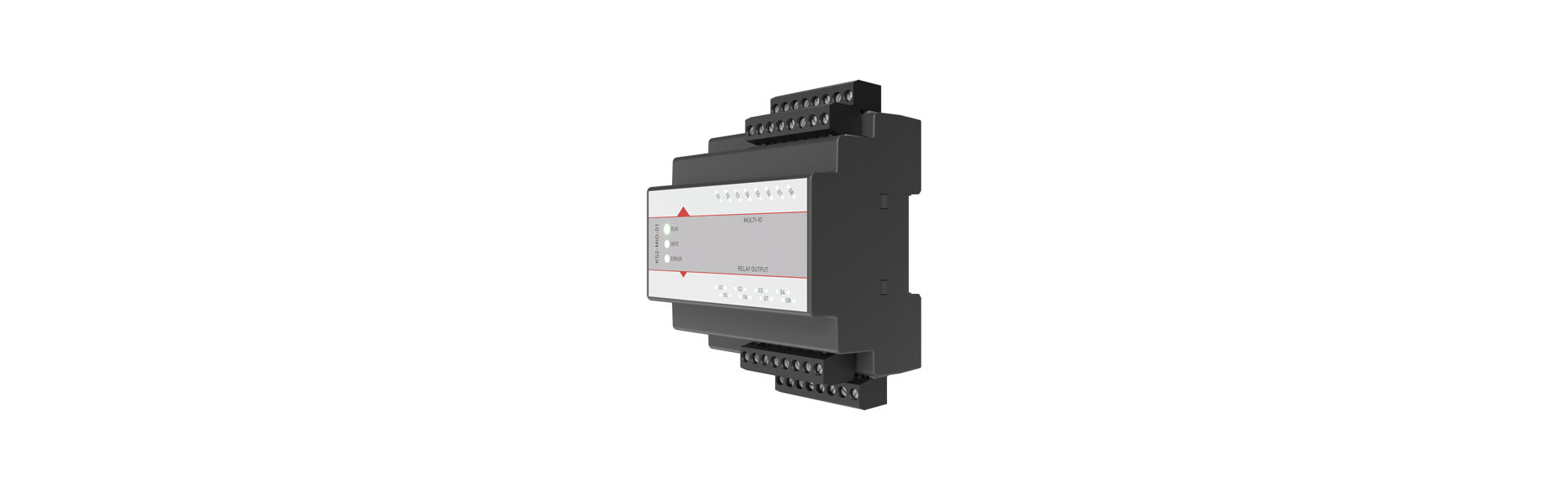

KS2-MIO-01 Multi-IO module turned halfway to the left from the front

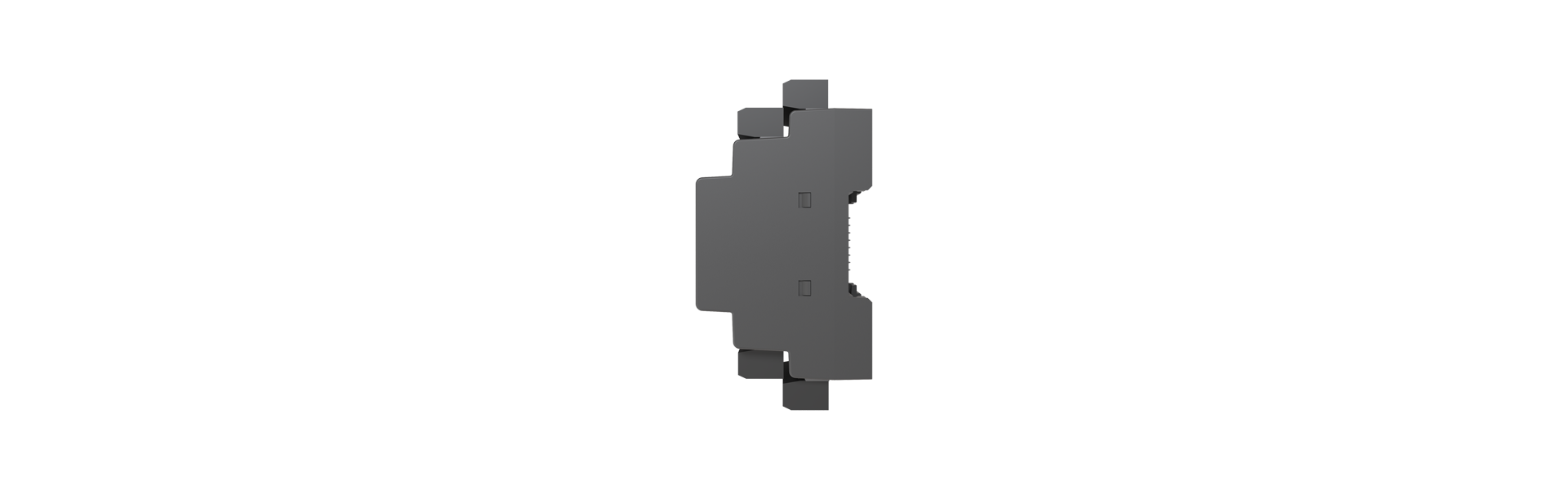

KS2-MIO-01 Multi-IO module from the side

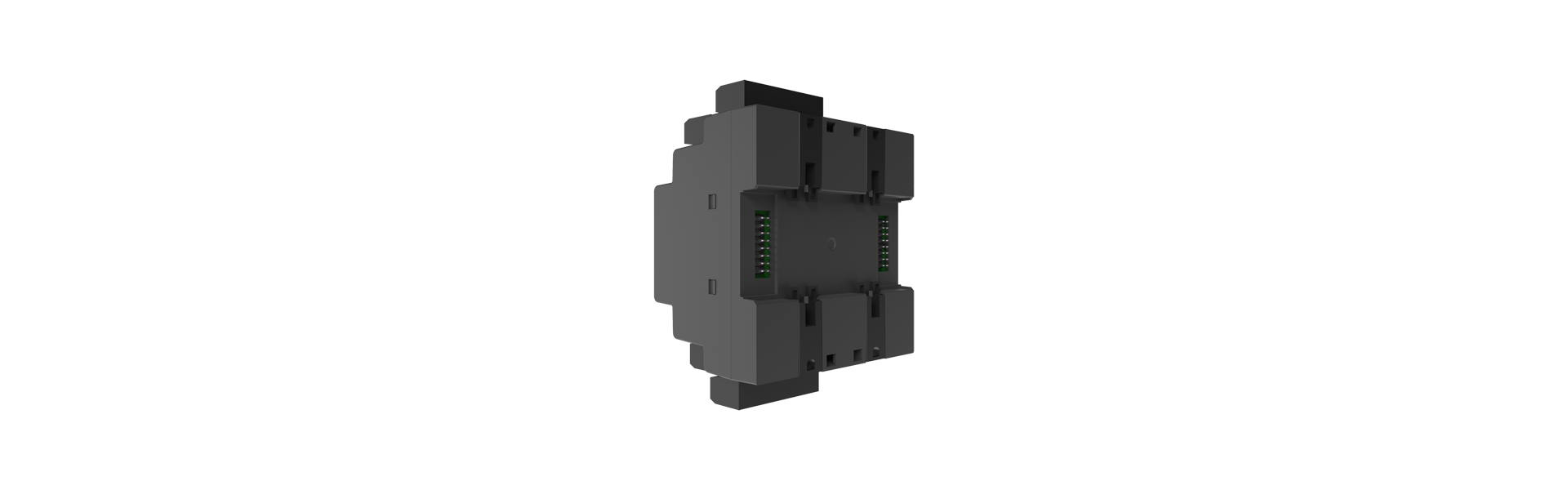

KS2-MIO-01 Multi-IO module turned from back to right

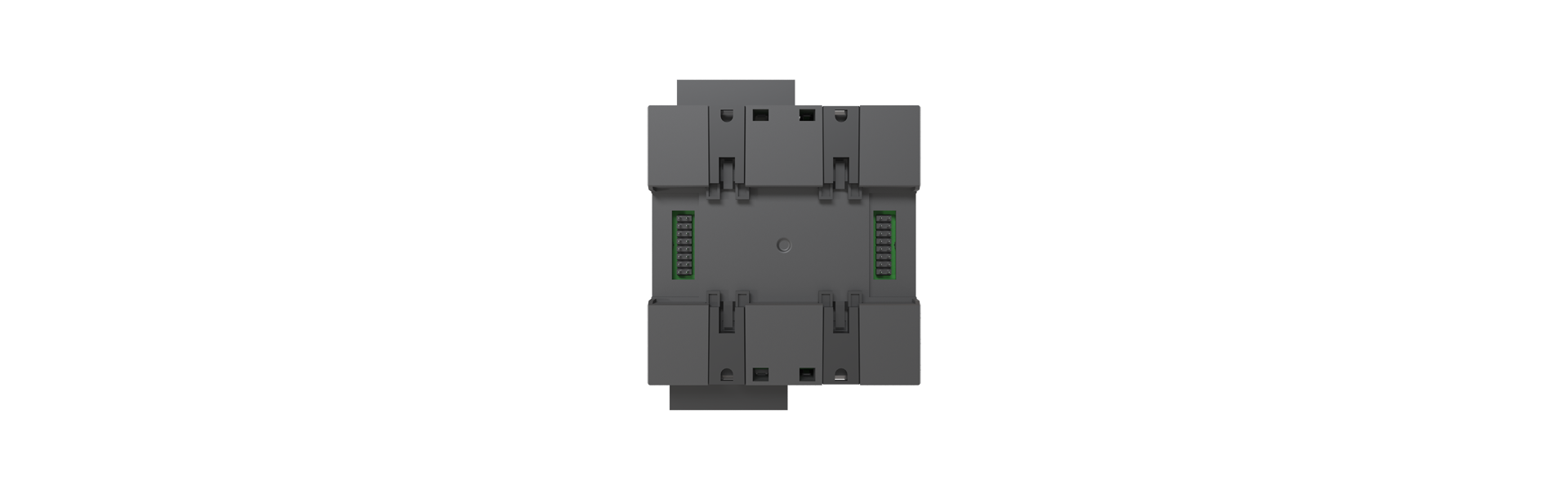

KS2-MIO-01 Multi-IO module from the rear

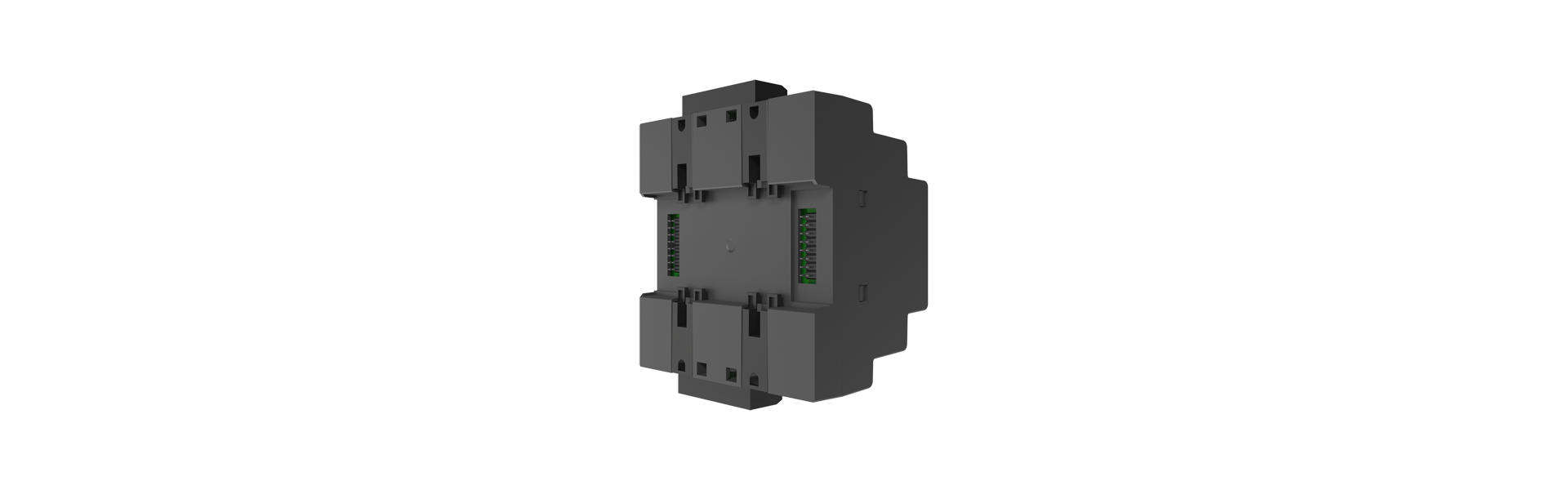

KS2-MIO-01 Multi-IO module turned from back to left

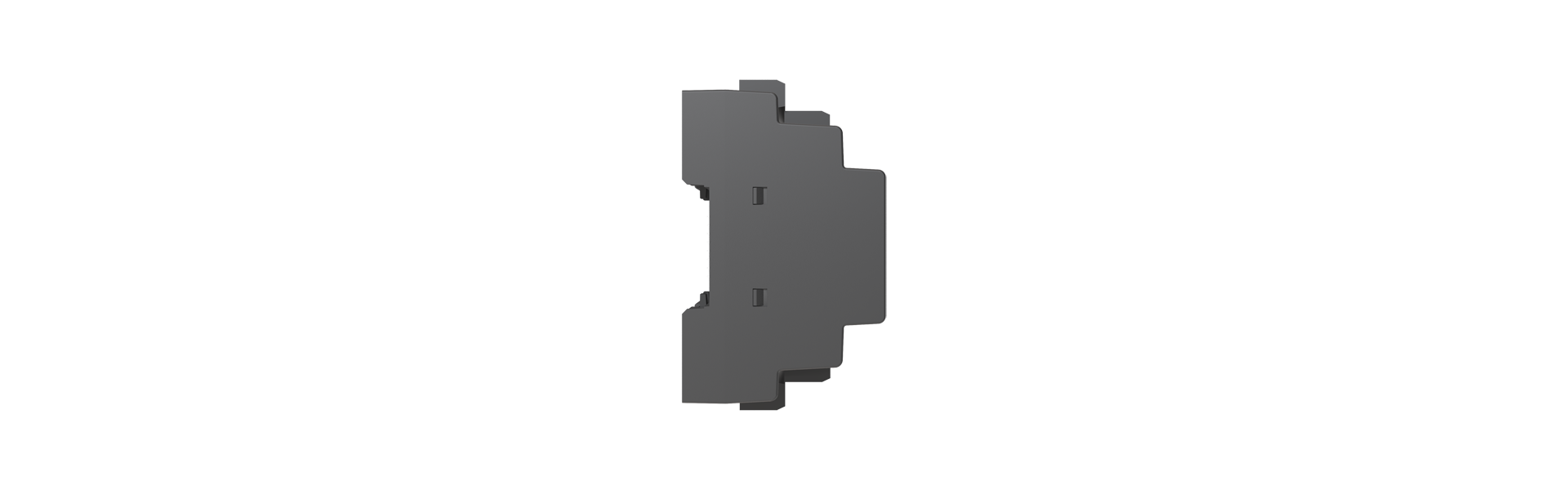

KS2-MIO-01 Multi-IO module from the side

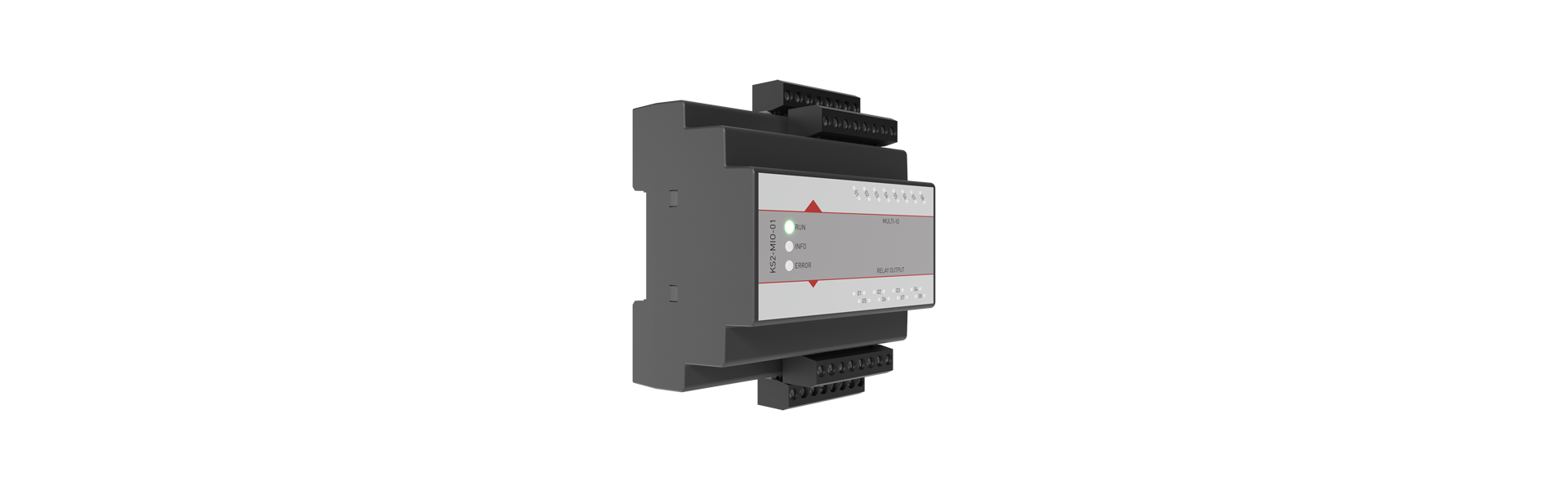

KS2-MIO-01 Multi-IO module turned halfway to the right from the front

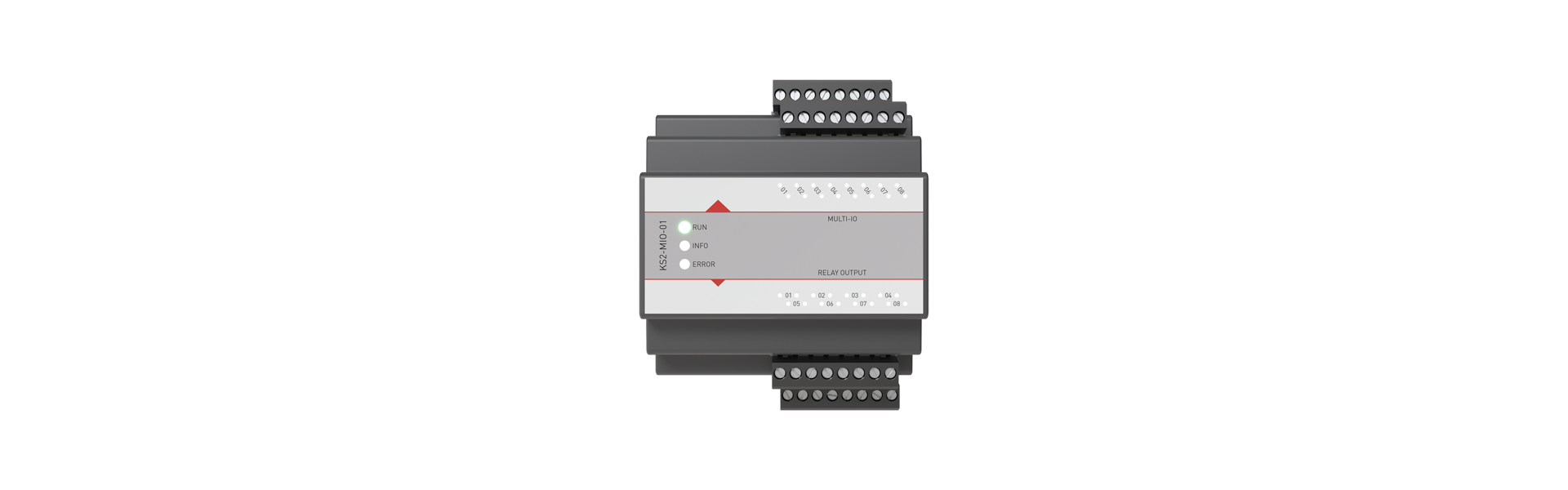

KS2-MIO-01 Multi-IO module from the front
KS2 switch cabinet opened from the front

Optional accessories

KS2-CON-01 Top-hat rail connector

Two top-hat rail connectors connect the peripheral bus of the modules to each other if they are installed on different DIN top-hat rails. The two top-hat rail connectors are connected by using a pre-assembled P-Net cable.

KS2-LA-01 Cable termination turned halfway to the right from the front

The line termination is used to connect the resistor combinations for cable monitoring easily.
